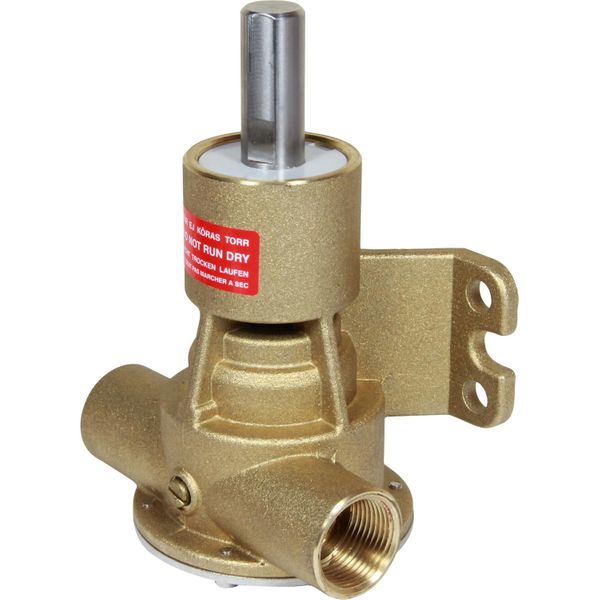

Johnson F5B-8 Foot Mounted Engine Cooling Pump (3/4" BSP / 17mm Shaft)

Part No: 10-24571-01



Johnson flexible impeller marine engine cooling pump. This F5B pump is pulley driven and foot mounted.

Johnson F5B-8 engine cooling water pump replaces Johnson 10-24463-01 (F4B-903), 10-24571-13 (F5B-8) and 10-24073-1 (F5B-8) flexible impeller pumps.

Fits the following marine engines:

- CMD AM45

- Diecon FD35

- Isuzu 4JG2 Gen-set

Johnson 10-24571-01 Spare Parts:

Position | Spare Part | Part Number | Quantity

1 | Body | 01-24573-1 | 1

2 | Shaft | 01-46744 | 1

3 | End Cover | 01-46747-2 | 1

4 | Impeller | 08-1027B-1 | 1

5 | Cam | 01-42397 | 1

6 | Pin | 01-42400 | 1

7 | Wear Plate | 01-42399-2 | 1

8 | Washer | 01-45680 | 1

9 | Plate | 01-45047 | 1

10 | Spacer | 01-46009 | 1

11 | Tap Bolt | 0.0141.700 | 6

12 | Screw | 01-46794-05 | 1

13 | O-Ring | 0.2173.475 | 1

14 | O-Ring | 0.2173.402 | 1

15 | Ball Bearing | 0.3437.742 | 2

16 | Mech Seal | 0.2247.022 | 1

17 | Retaining Ring | 0.0371.040 | 1

18 | Ext. Circlip | 0.0370.017 | 1

19 | Ext. Circlip | 0.0370.516 | 1

20 | Label | 01-46797 | 1



Flow Rate Description	46 LPM at 2000 RPM
Height Description	90mm (3.54")
Length	151mm (5.95")
Material	Bronze Body, Stainless Steel Shaft
Series	F5B-8
Type	Engine Cooling Pumps
Width	106mm (4.17")
Brand	Johnson
Diameter Description	Shaft: 17mm (5/8")
Drive Type Description	Pulley Driven
Impeller Fitted	09-1027B-1
Model	10-24571-01
Mounting Description	Pedestal Mount
Replaces	Johnson F4B-903 (10-24463-01), F5B-8 (10-24073-1 & 10-24571-13)
Inlet Outlet	3/4" BSP Female
