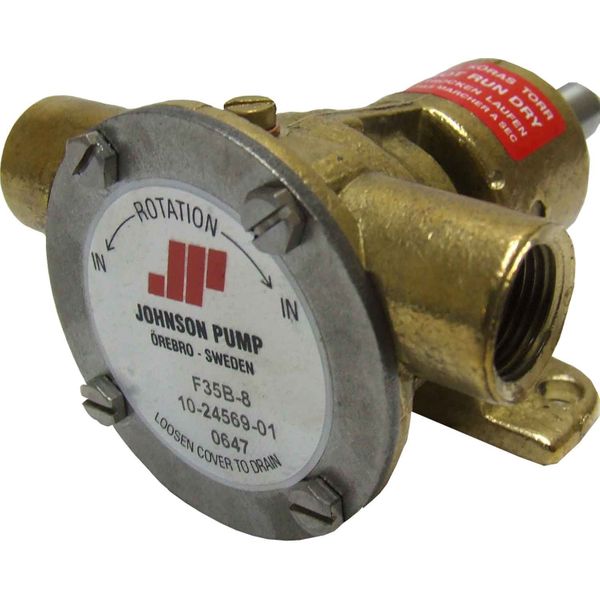

Johnson F35B-8 Foot Mounted Engine Cooling Pump (3/8" BSP)

Part No: 10-24569-01

Johnson F35B-8 flexible impeller marine engine cooling pump, part number Johnson 10-24569-01. This pump is pulley driven and foot mounted, with 3/8" BSP female ports and a 12mm shaft. The Johnson F35B-8 engine cooling pump is fitted as standard on PowerGen Pty Ltd Kubota OC60 engines.

Johnson 10-24569-01 Spare Parts:

Position | Spare Part | Part Number | Quantity

1 | Body | 01-35881-1 | 1

2 | Shaft | 01-46735-1 | 1

3 | End Cover | 01-46739-2 | 1

4 | Impeller | 08-808B | 1

5 | Cam | 01-42910 | 1

6 | Spacer | 01-45542 | 1

7 | Pin | 01-42400 | 1

8 | Wear Plate | 01-46676 | 1

9 | Plate | 01-45049 | 1

10 | Washer | 01-45659 | 1

11 | Label | 01-46797 | 1

12 | Washer | 01-46790-01 | 1

14 | Screw | 0.0279.300 | 4

15 | Screw | 01-46794-03 | 1

16 | O-Ring | 0.2173.440 | 1

17 | O-Ring | 0.2173.432 | 1

18 | Ball Bearing | 0.3431.748 | 2

19 | Mechanical Seal | 0.2247.021 | 1

20 | Internal Circlip | 0.0371.028 | 1

21 | External Circlip | 0.370.012 | 2
