Johnson F2P10-19 Electric Motor Pump (24V / 15lpm / 13mm Hose)
Part No: 10-24886-02

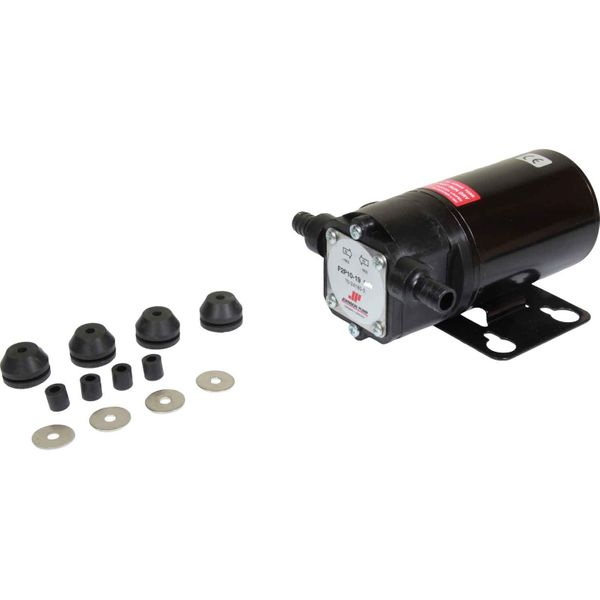

The Johnson F2P10-19 electric motor pump is for 24V and can pump 15 litres per minute and self primes up to 1.5 metres. The Johnson pump has a nitrile impeller and a thermoplastic polyester construction with barb connections for 13mm (1/2") ID hose.
Johnson 10-24886-02 Spare Parts:
Position | Spare Part | Part Number
1 | Body | 01-24885
2 | Motor (24V) | 01-35285-02
3 | Impeller | 09-1077B-9
4 | Lip Seal | 0.2233.007
5 | End Cover | 01-45739-2
6 | O-Ring | 0.2172.506
7 | Screw | 0.0145.009
8 | Nut | 0.0185.309
9 | Washer | 0.0353.301
10 | Slinger | 0.2173.470
12 | Foot Kit | 09-47194
13 | Wear Plate | 01-47524
| Service Kit | 09-47582
| Approvals | ISO8846 marine (ignition), ISO8849 marine (bilge pump), ISO10133 Small Craft (Low voltage DC Installations) standards. |
| Flow Rate Description | 900LPH (240 US GPH) |
| Flow Rate 1 Metre Head | 870 LPH (228 US GPH) (at 1.8m Head: 840 LPH (222 US GPH)) |
| Fuse | 8A |
| Height Description | 78mm (3.1") |
| Length | 172mm (6.8") |
| Series | F2P010-19 |
| Voltage Description | 24V DC |
| Width | 117mm (4.6") |
| Brand | Johnson |
| Automatic Bilge Pumps | No |
| Flow Rate 3 Metre Head | 810LPH (216 US GPH) |
| Flow Rate 6 Metre Head | 660LPH (174 US GPH) |
| Hose Size | 13mm / 1/2" |
| Model | 10-24886-02 |
| Replacement Impeller | JP-09-1077B-9 |
| Self Primes up to | 1.5 Metres (4.9 Feet) |
| Inlet Outlet | For 13mm (1/2") ID Hose |
| Amps Description | 5.6A at 0 Bar & 0 Feet, 6.1A at 0.6 Bar & 20.1 Feet |
