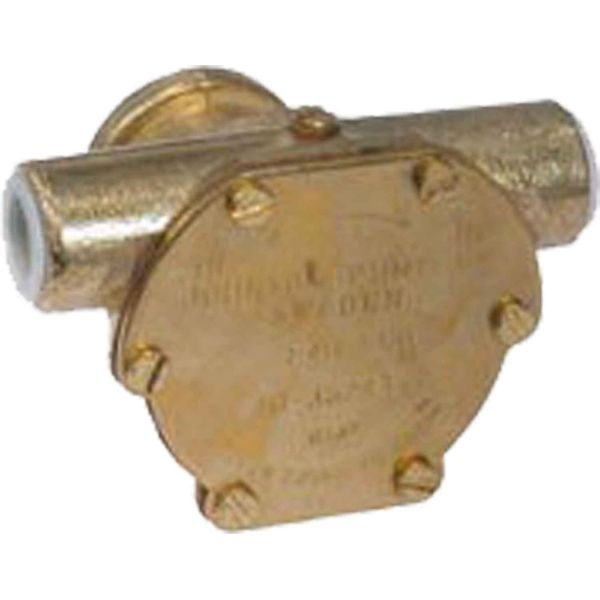

Johnson Engine Cooling Pump F4B-902 for (Flange Mount)

Part No: 10-35241-2

Johnson F4B-902 flexible impeller engine cooling pump for flange mounting.

Johnson F4B-902 engine cooling pump engine applications:

- Lister Petter LPW2

- Watermota Alpha Canal Star 18, Alpha Sailboat 20, Alpha Sailboat 30, Alpha Sailboat 40, Alpha Sailboat 55, Alpha Workboat 20, Alpha Workboat 30 and Alpha Workboat 40

When ordering the Johnson 10-35241-2 pump, we recommend adding a replacement impeller, use part number: 09-810B-1 - always carry a spare!

Johnson 10-35241-2 Spare Parts:

Position | Spare Part | Part Number | Quantity

1 | Body | 01-35239 | 1

2 | Shaft | 01-45556 | 1

3 | Cam | 01-45084 | 1

4 | Gasket | 01-45284 | 1

5 | End Cover | 01-45282 | 1

6 | Impeller | 09-810B | 1

7 | Screw | 05-04-163 | 6

8 | Screw | 05-04-124 | 1

9 | Screw | 05-04-163 | 1

10 | Washer | 05-01-120 | 1

11 | Lip Seal | 05-29-139 | 2

12 | Ball Bearing | 05-08-503 | 2

13 | Retaining Ring | 05-34-131 | 1

14 | Clip | 01-43238 | 2

15 | O-Ring | 05-06-521 | 1

16 | Spacer | 01-46955 | 1
