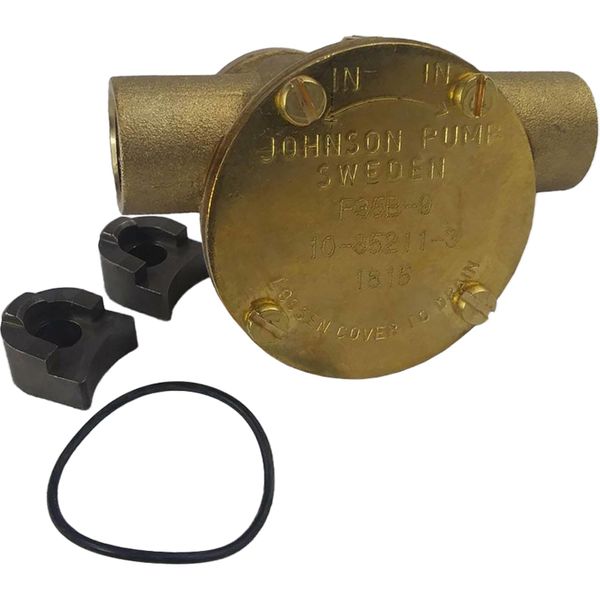

Johnson Engine Cooling Pump F35B-9 (Flange Mount)

Part No: 10-35211-3

The Johnson F35B-9 engine cooling pump is suitable for flange mounting and has 3/8" H port.

Johnson F35B-9 engine cooling pump engine applications:

- Nanni 2.40 HE

- WM Diesel (Kubota) WM 12 (Z482)

- Diecon D850 (as the Circulation Pump) & Z600 (as the Circulation Pump)

- F J Fay 2400 & D850

- Sea Wasp SW 4800 (6 KVA)

This engine cooling / engine circulation pump replaces Johnson 10-35122-1 pumps.

When ordering the Johnson 10-35211-3 pump, we recommend adding a replacement impeller, use part number: JP-09-808B - always carry a spare!

Johnson 10-35211-3 Pump Spare Parts:

Position | Spare Part | Part Number | Quantity

1 | Body | 01-35096-2 | 1

2 | Shaft | 01-45353 | 1

3 | Impeller | 09-808B | 1

4 | Cam | 01-42910 | 1

5 | End Cover | 01-43239 | 1

6 | Gasket | 01-43240 | 1

7 | Wear Plate | 01-45087 | 1

8 | Pin | 01-42400 | 1

9 | Screw | 05-04-114 | 1

10 | Screw | 05-04-163 | 4

11 | Screw | 05-04-123 | 1

12 | Washer | 05-01-120 | 1

13 | Lip Seal | 05-29-139 | 2

14 | Ball Bearing | 05-08-503 | 2

15 | Retaining Ring | 05-34-131 | 1

16 | O-Ring | 05-06-521 | 1

17 | Clip | 01-43238 | 2
