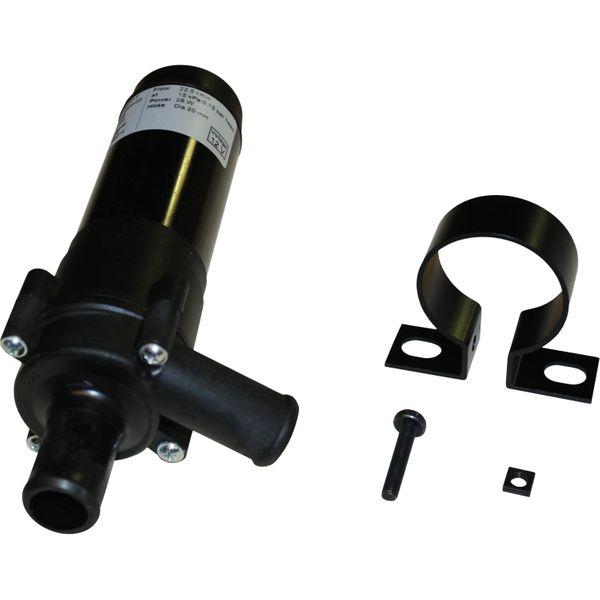

Johnson Compact Water Circulating Pump (12V / 22.5LPM / 20mm)
Johnson Compact Water Circulating Pump (12V / 22.5LPM / 20mm)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Johnson Compact Water Circulating Pump (12V / 22.5LPM / 20mm)
Part No: 10-24504-03
Johnson magnetic driven centrifugal pump for use as a fresh water circulating pump. Featuring a compact design, low current consumption and high flow rates, this pump is suitable for circulating water in live fish tanks, heating and cooling systems etc. The pump is suitable for fresh water and antifreeze, but not salt water.
The pump has a thermoplastic body and impeller, with stainless steel shaft. A magnet drives the enclosed motor which is designed for continuous operation, withstanding dry running for up to 30 minutes. The pump shell is leak proof due to the seal-less design. The Johnson CM30P7-1 is CE marked to EN55014, ISO8846, ISO10133 and 72/245/EEG, 95/54EG and has a service life of 5,000 hours.
Approvals
CE Marked to EN55014, ISO8846, ISO10133 and 72/245/EEG, 95/54EG
Flow Rate Description
22.5 LPM (5.9 US GPM) at 0.1 bar
Fuse
3A
Height Description
85mm
Length
177mm
Series
CM30P7
Temperature Range
Min -40°C, Max +100°C
Voltage Description
12V DC
Width
68mm
Brand
Johnson
Continuously Rated
Yes
Hose Size
20mm / 3/4"
Model
10-24504-03
Inlet Outlet
For 20mm (3/4") ID Hose
Amps Description
2.2A Maximum
Share
View full details
Johnson Compact Water Circulating Pump (12V / 22.5LPM / 20mm)
Part No: 10-24504-03
Johnson magnetic driven centrifugal pump for use as a fresh water circulating pump. Featuring a compact design, low current consumption and high flow rates, this pump is suitable for circulating water in live fish tanks, heating and cooling systems etc. The pump is suitable for fresh water and antifreeze, but not salt water.
The pump has a thermoplastic body and impeller, with stainless steel shaft. A magnet drives the enclosed motor which is designed for continuous operation, withstanding dry running for up to 30 minutes. The pump shell is leak proof due to the seal-less design. The Johnson CM30P7-1 is CE marked to EN55014, ISO8846, ISO10133 and 72/245/EEG, 95/54EG and has a service life of 5,000 hours.
| Approvals | CE Marked to EN55014, ISO8846, ISO10133 and 72/245/EEG, 95/54EG |
| Flow Rate Description | 22.5 LPM (5.9 US GPM) at 0.1 bar |
| Fuse | 3A |
| Height Description | 85mm |
| Length | 177mm |
| Series | CM30P7 |
| Temperature Range | Min -40°C, Max +100°C |
| Voltage Description | 12V DC |
| Width | 68mm |
| Brand | Johnson |
| Continuously Rated | Yes |
| Hose Size | 20mm / 3/4" |
| Model | 10-24504-03 |
| Inlet Outlet | For 20mm (3/4") ID Hose |
| Amps Description | 2.2A Maximum |
