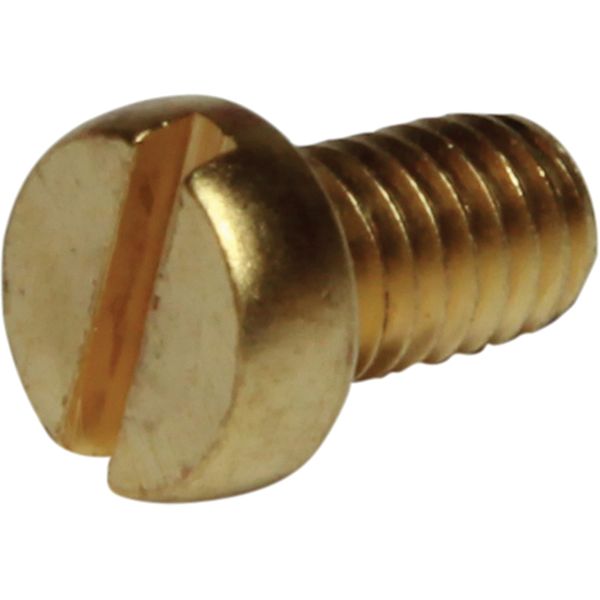

Johnson Brass Screw 01-46794-05 for Johnson F7B, F5B, F4B Engine Pumps

Part No: 05-04-117

This Johnson 01-46794-05 brass screw replaces Johnson 05-04-117 and Jabsco SP1003-09 screws, and is suitable for Johnson engine cooling pumps with the Johnson 01-42397 cam plate (Jabsco 490):

As an end cover screw (6 screws are required per pump):

F7B-3 pumps (10-22045-1 & 10-22054-1), F7B-39 pumps (10-22045-2), F7B-303 pumps (10-22045-3), F7B-393 pumps (10-22045-4), F7B-3000 pumps (10-24209-1), F7B-3020 pumps (10-24209-5), F7B-3030 pumps (10-24209-3), F7B-3900 pumps (10-24209-2), F7B-3920 pumps (10-24209-6), F7B-3930 pumps (10-24209-4), F7B-30007 pumps (10-24209-7), F7B-30207 pumps (10-24209-11), F7B-30307 pumps (10-24209-9), F7B-39007 pumps (10-24209-8), F7B-39207 pumps (10-24209-12), F7B-39307 pumps (10-24209-10)

F7B-5 pumps (10-22342-), F7B-5000 pumps (10-24116-99), F7B-5007 pumps (10-24116-98)

F7B-9 pumps (10-21876-1, 10-22144-1, 10-22335-3, 10-22354-1, 10-24020-1, 10-24020-2, 10-24103-1, 10-24139-1, 10-24139-3, 10-24139-5, 10-24139-7, 10-24235-1, 10-24235-3, 10-24253-2, 10-24365-01, 10-24365-02, 10-24445-01, 10-24580-01, 10-32058-1 & 10-32256-1), F7B-902 pumps (10-11236-3 & 10-24253-1), F7B-903 pumps (10-11236-2, 10-21876-2, 10-22139-1, 10-22147-1, 10-22335-2, 10-22335-4, 10-22354-2, 10-24017-1, 10-24017-2, 10-24017-3, 10-24017-4, 10-24028-1, 10-24048-1, 10-24057-1, 10-24103-2, 10-24139-2, 10-24139-4 & 10-24235-2)

As a cam plate screw:

F4B-9 pumps (10-24086-1)

F5B 12V & 24V pumps (10-24002-1 & 10-24002-2)

F5B-19 12V & 24V pumps (10-24188-1, 10-24188-7, 10-24188-2, 10-24188-8 & 10-24188-10), F5B-1907 12V & 24V pumps (10-24188-4 & 10-24188-5)

F5B-3 pumps (10-22044-1), F5B-39 pumps (10-22044-3), F5B-3000 pumps (10-24210-1), F5B-3900 pumps (10-24210-2), F5B-30007 pumps (10-24210-5), F5B-39007 pumps (10-24210-6)

F5B-5000 pumps (10-24112-)

F5B-8 pumps (10-24073-1, 10-24073-9, 10-24073-10, 10-24073-12, 10-24571-01, 10-24571-13, 10-24571-53 & 10-24571-54), F5B-85 pumps (10-24226-1), F5B-89 pumps (10-24073-3, 10-24571-02 & 10-24571-14), F5B-8001 pumps (10-24113-1 & 10-35180-2), F5B-8007 pumps (10-24073-5, 10-24073-51, 10-24571-51 & 10-24571-52), F5B-8907 pumps (10-24073-7)

F5B-9 pumps (10-11246-1, 10-22143-1, 10-22355-1, 10-24015-1, 10-24085-1, 10-24100-1, 10-24140-1, 10-24140-3, 10-24140-5, 10-24184-1, 10-24215-1, 10-24268-1, 10-24268-4, 10-24325-01, 10-24334-01, 10-24451-01, 10-32603-1, 10-32621-2, 10-35067-1, 10-35100-1, 10-35231-1, 10-35327-01 & 10-42864-1), F5B-903 pumps (10-35327-03), F5B-905 pumps (10-24318-01), F5B-9001 pumps (10-24035-1 & 10-24119-1), F5B-9002 pumps (10-24035-2 & 10-24119-2), F5B-9003 pumps (10-24035-4 & 10-24119-4), F5B-9004 pumps (10-24035-5 & 10-24119-5), F5B-9005 pumps (10-24035-6 & 10-24119-6), F5B-9006 pumps (10-24119-7), F5B-9007 pumps (10-24119-8)

This is a heavy duty screw with a brass construction.
