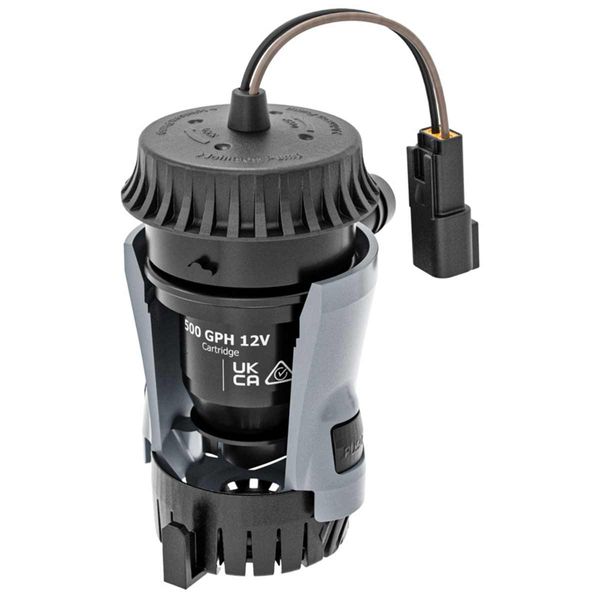

Johnson Aqua Void Bilge Pump OEM Bulk (12V / 500 GPH)
Johnson Aqua Void Bilge Pump OEM Bulk (12V / 500 GPH)
Johnson Aqua Void Bilge Pump OEM Bulk (12V / 500 GPH)
Part No: 10-13626-02
Johnson Aqua Void cartridge bilge pump 500 GPH 12V DC features an industry-first quick-change motor connection and reinforced click-in basket, to simplify cleaning and installation and it's convenient and efficient. The Aqua Void bilge pump enhanced motor ensures reliability and performance in any condition for a worry-free boating experience.
This bilge pump can replace Volvo Penta 21662681 and 21662682 bilge pumps, and will increase the litres per minute from 25 / 32 to 38LPM.
The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.
Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.
Johnson Pump Marine is renowned for industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.
Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance your boating experience. Get the Aqua Void today!
Please Note: This Aqua Void bilge pump is the OEM bulk packaged version; Dura-Ports and check valve must be purchased separately.
- Limited 3-Year Warranty
- 500 GPH Capacity
- Heightened Efficiency with an Increased Flow Rate - High Flow Impeller Design
- Quick-Change Motor Connection Enjoy Quick and Hassle-Free Cartridge Motor Changes or Capacity Upgrades. Industry First and Only Cartridge Motor Pump with included harness connection requiring no cutting and splicing of wires
- Water-cooled motor for long service intervals
- Compact, all-in-one motor/impeller unit with stainless steel 316 shaft
- No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses
- Meets the international standard, ISO 8849 marine
- Moulded T-Slot - Easy Installation with Switches
- Cartridge Pumps can be combined with either an automatic switch AS888, an electronic float switch or the Ultima Switch for automatic operation
Approvals | ISO 8849 Marine |
Flow Rate Description | 2280 LPH (600 US GPH) |
Flow Rate 1 Metre Head | 1560 LPH (410 US GPH) |
Fuse | 3.5A |
Height Description | 119mm (4.69") |
Material | ABS Pump body, Nitrile Rubber Shaft seal & 316 Stainless Steel Shaft |
Series | Aqua Void |
Voltage Description | 12V DC |
Weight | 0.32kg (11.2 oz) |
Width | 133mm (5.24") |
Brand | Johnson |
Automatic Bilge Pumps | No |
Diameter Description | 69.8mm (2-3/4") |
Flow Rate 2 Metre Head | 960 LPH (250 US GPH) |
Maximum Recommended Head | 3 Metres (9.9 feet) |
Replaces | Volvo Penta 21662681, 21662682 & Johnson 33-1450-01 |
Wire Size | 16 Gauge (1.3mm2) |
Amps Description | 2.7A |
