Johnson Aqua Void Automatic Bilge Pump (12V / 800 GPH / 19mm Hose)

Johnson Aqua Void Automatic Bilge Pump (12V / 800 GPH / 19mm Hose)

Regular price £130.98 GBP
Regular price Sale price £130.98 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

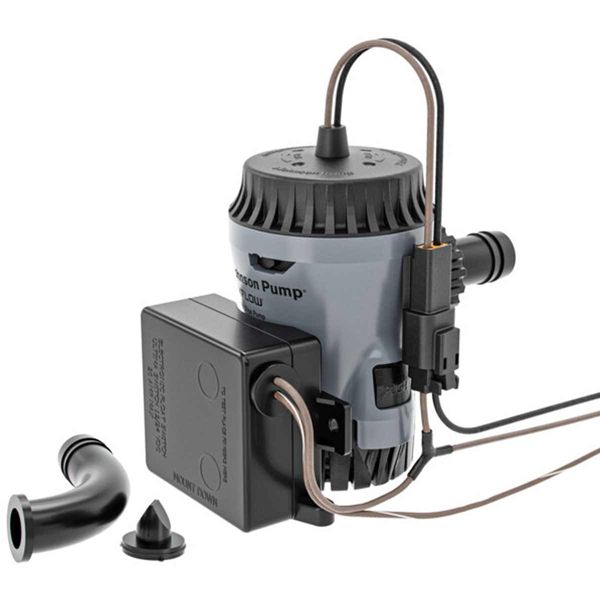

Johnson Aqua Void Automatic Bilge Pump (12V / 800 GPH / 19mm Hose)


Part No: 10-13636-01

Johnson Aqua Void automatic cartridge bilge pump 800 GPH 12V DC features an industry-first quick-change motor connection and reinforced click-in basket, to simplify cleaning and installation - convenient and efficient. The Aqua Void Ultima Combo bilge pump enhanced motor ensures reliability and performance in any condition for a worry-free boating experience.

Combined with the non-clogging electronic switch Ultima Switch for automatic operation. The electronic automatic switch Ultima Switch uses the patented Mirus field effect detector cells producing micro-electrical fields that detect disruptions caused by level of water present in the bilge and automatically activates and deactivates the pump.

Johnson's ground-breaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.

The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.

Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.

Johnson Pump Marine is renowned for industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.

Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance your boating experience. Get the Aqua Void today!

Johnson 10-13636-01 features easy to install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps include a straight and a 90º smooth elbow Dura-Port and a removeable check valve.

- Limited 3-Year Warranty

- 800 GPH Capacity

- Pre-configured with an electronic Ultima Switch for automatic operation

- Heightened Efficiency with an Increased Flow Rate - High Flow Impeller Design

- Quick-Change Motor Connection Enjoy Quick and Hassle-Free Cartridge Motor Changes or Capacity Upgrades. Industry First and Only Cartridge Motor Pump with included harness connection requiring no cutting and splicing of wires

- Water-cooled motor for long service intervals

- Compact, all-in-one motor/impeller unit with stainless steel (316) shaft

- No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.

- Easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps

- Include both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve

- Meets the international standard, ISO 8849 marine

- Moulded T-Slot - Easy Installation with Switches

- Cartridge Pump combined with the Ultima Switch for automatic operation





Approvals ISO 8849 Marine
Flow Rate Description 3000 LPH (795 US GPH)
Flow Rate 1 Metre Head 2100 LPH (560 US GPH)
Fuse 5A
Height Description 120mm (4.69")
Material ABS Pump body, Nitrile Rubber Shaft seal & 316 Stainless Steel Shaft
Outlet 19mm (3/4") ID Hose
Series Aqua Void Automatic Ultima Combo
Supplied With Straight Dura-Port, 90° Smooth Elbow Dura-Port & Check Valve
Voltage Description 12V DC
Weight 0.52kg (18.5 oz)
Width 75mm (2.95")
Brand Johnson
Automatic Bilge Pumps Yes
Flow Rate 2 Metre Head 1560 LPH (405 US GPH)
Hose Size 19mm / 3/4"
Maximum Recommended Head 4.4 Metres (14.5 feet)
Replaces Johnson L550 UC 32-1550UC-01
Wire Size 16 Gauge (1.3mm2)
Amps Description 3.7A
Depth 168mm (6.63")
