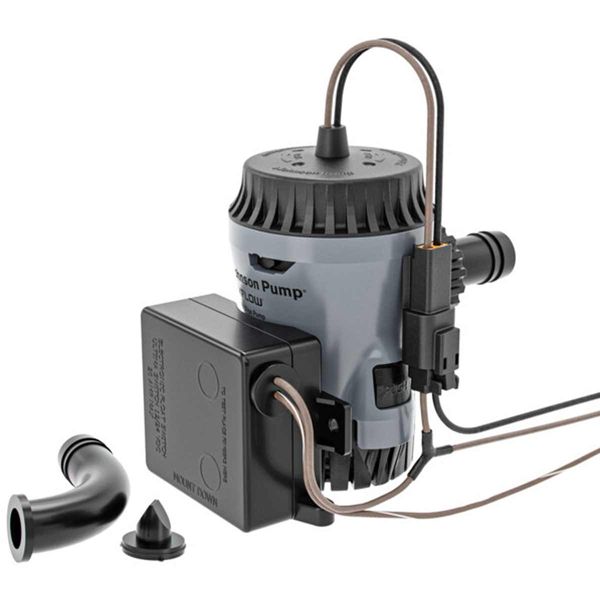

Johnson Aqua Void Automatic Bilge Pump (12V / 500 GPH / 19mm Hose)
Johnson Aqua Void Automatic Bilge Pump (12V / 500 GPH / 19mm Hose)
Johnson Aqua Void Automatic Bilge Pump (12V / 500 GPH / 19mm Hose)
Part No: 10-13635-01
Johnson Aqua Void automatic cartridge bilge pump 500 GPH 12V DC features an industry-first quick-change motor connection and reinforced click-in basket, to simplify cleaning and installation - convenient and efficient. The Aqua Void Ultima Combo bilge pump enhanced motor ensures reliability and performance in any condition for a worry-free boating experience.
Combined with the non-clogging electronic switch Ultima Switch for automatic operation. The electronic automatic switch Ultima Switch uses the patented Mirus field effect detector cells producing micro-electrical fields that detect disruptions caused by level of water present in the bilge and automatically activates and deactivates the pump.
Johnson's ground-breaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.
The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.
Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.
Johnson Pump Marine is renowned for industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.
Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance your boating experience. Get the Aqua Void today!
Johnson 10-13635-01 features easy to install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps include a straight and a 90º smooth elbow Dura-Port and a removeable check valve.
- Limited 3-Year Warranty
- 500 GPH Capacity
- Pre-configured with an electronic Ultima Switch for automatic operation
- Heightened Efficiency with an Increased Flow Rate - High Flow Impeller Design
- Quick-Change Motor Connection Enjoy Quick and Hassle-Free Cartridge Motor Changes or Capacity Upgrades. Industry First and Only Cartridge Motor Pump with included harness connection requiring no cutting and splicing of wires
- Water-cooled motor for long service intervals
- Compact, all-in-one motor/impeller unit with stainless steel (316) shaft
- No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
- Easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
- Include both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
- Meets the international standard, ISO 8849 marine
- Moulded T-Slot - Easy Installation with Switches
- Cartridge Pump combined with the Ultima Switch for automatic operation
Approvals | ISO 8849 Marine |
Flow Rate Description | 2280 LPH (600 US GPH) |
Flow Rate 1 Metre Head | 1560 LPH (410 US GPH) |
Fuse | 3.5A |
Height Description | 120mm (4.69") |
Material | ABS Pump body, Nitrile Rubber Shaft seal & 316 Stainless Steel Shaft |
Outlet | 19mm (3/4") ID Hose |
Series | Aqua Void Automatic Ultima Combo |
Supplied With | Straight Dura-Port, 90° Smooth Elbow Dura-Port & Check Valve |
Voltage Description | 12V DC |
Weight | 0.45kg (17.1 oz) |
Width | 75mm (2.95") |
Brand | Johnson |
Automatic Bilge Pumps | Yes |
Flow Rate 2 Metre Head | 960 LPH (250 US GPH) |
Hose Size | 19mm / 3/4" |
Maximum Recommended Head | 3 Metres (9.9 feet) |
Replaces | Johnson L450 UC 32-1450UC-01 |
Wire Size | 16 Gauge (1.3mm2) |
Amps Description | 2.7A |
Depth | 168mm (6.63") |
