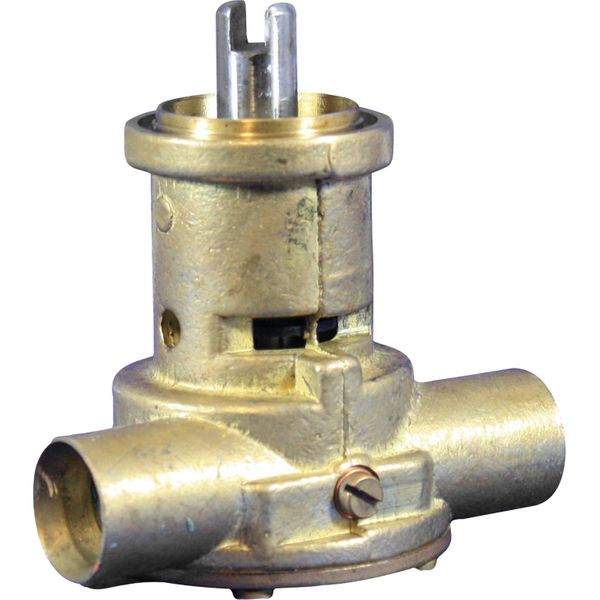

Johnson 10-35157-1 Engine Cooling Pump F35B-9 (Volvo Penta Port)

Part No: 10-35157-1



The Johnson 10-35157-1 is a flange mounted, F35B-9 engine driven flexible impeller pump. The pump ports are configured for Volvo Penta AQD2B, D1A, D2A, MB10A, MD1A, MD1B, MD2, MD2A, MD2B, MD5A, MD5B, MD5C, MD6A, MD6B, MD7A, MD7B, MD11C and MD11D engines. The 10-35157-1 raw water pump has a bearing supported shaft.

Drive for the pump is taken directly from the Volvo engine. The water pump is held in place with two pump clamps 01-43238.

Johnson impeller pump 10-35157-1 can replace Volvo Penta pumps 858065, 833883, 833415, 833522 and 840076 as well as Johnson pumps 10-35157-5 and 10-35118-1. If you need a pump with 3/8" BSP threaded ports please use part number JP-10-35157-3.

It's good practice to carry a spare impeller on board, this pump uses Johnson impeller JP-09-808B.

This engine cooling pump does not come with the O-ring that fits between the pump and the engine, this O-ring is our part number JP-05-06-521, available below.

Johnson 10-35157-1 Spare Parts:

Position | Spare Part | Part Number | Quantity

1 | Body | 01-35096-1 | 1

2 | Shaft | 01-45556 | 1

3 | Impeller | 09-808B | 1

4 | Cam | 01-42910 | 1

5 | End Cover | 01-43239 | 1

6 | Gasket | 01-43240 | 1

7 | Wear Plate | 01-46087 | 1

8 | Pin | 01-42400 | 1

9 | Screw | 05-04-123 | 1

10 | Screw | 05-04-163 | 4

11 | Screw | 05-04-114 | 1

12 | Washer | 05-01-120 | 1

13 | Lip Seal | 05-29-139 | 2

14 | Ball Bearing | 05-08-503 | 2

15 | Retaining Ring | 05-34-131 | 1

17 | Spacer | 01-45955 | 1





Material	Brass Body Flexible Impeller
Series	F35B-9
Size	3/8"
Type	Engine Cooling Pumps
Brand	Johnson
Suitable For	Volvo
Drive Type Description	Shaft
Hose Size	10mm / 3/8"
Model	10-35157-1
Mounting Description	Flange Mounted
Repair Kit	JP-09-45589
Replacement Impeller	JP-09-808B
Replaces	209788 Plain Bearing Pump 10-35118-1
Inlet Outlet	3/8" Volvo Penta configured
