Johnson 09-810B-1 MC97 Impeller Kit for Johnson F4B Pumps

Part No: 09-824P-1

The genuine Johnson MC97 flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller is designed to be installed to some of the F4 range of Johnson Pumps which suits the impeller dimensions listed below, including:

- F4B-8 pumps (10-24074-1, 10-24074-13, 10-24074-14, 10-24095-1, 10-24164-1, 10-24164-2, 10-24570-01, 10-24570-13, 10-24570-53 & 10-24570-54), F4B-802 pumps (10-24074-3), F4B-803 pumps (10-24074-5), F4B-8001 pumps (10-24099-1), F4B-8007 pumps (10-24074-7, 10-24074-71, 10-24570-07, 10-24570-19, 10-24570-51 & 10-24570-52), F4B-8021 pumps (10-24099-2), F4B-8027 pumps (10-24074-9), F4B-8031 pumps (10-24099-3), F4B-8037 pumps (10-24074-11)

- F4B-9 pumps (10-24144-1, 10-24144-2, 10-24165-1, 10-24166-1, 10-24214-1, 10-24214-4, 10-24290-1, 10-24319-01, 10-24321-01, 10-24326-01, 10-24335-01, 10-24336-01, 10-24341-01, 10-24514-01, 10-24734-04, 10-24734-05, 10-24749-01, 10-35115-1, 10-35127-1, 10-35127-2, 10-35127-3, 10-35127-4, 10-35142-1, 10-35161-1, 10-35167-1, 10-35205-01, 10-35216-1, 10-35240-1, 10-35241-1, 10-35265-1, 10-35271-01, 10-35333-01, 10-35355-01, 10-35725-01 & 10-36006-01), F4B-902 pumps (10-24214-3, 10-24214-6, 10-24290-3, 10-24319-03, 10-24321-03, 10-24326-03, 10-24336-03, 10-24341-03, 10-24509-02, 10-35167-2 & 10-35241-2), F4B-903 pumps (10-13337-01, 10-24165-2, 10-24166-2, 10-24214-2, 10-24214-5, 10-24290-2, 10-24319-02, 10-24321-02, 10-24326-02, 10-24336-02, 10-24341-02, 10-24509-01, 10-35115-2, 10-35142-2, 10-35167-3 & 10-35205-02)

- Vetus STM-7698 & STM-7699 pumps

- Yanmar 128990-42500 pumps

MC97 has been developed to meet new environmental regulations for rubber manufacturing processes and will replace the regular Johnson neoprene impeller compound. The development of MC97 has also resulted in an extended service life of the impeller compared to impellers in neoprene.

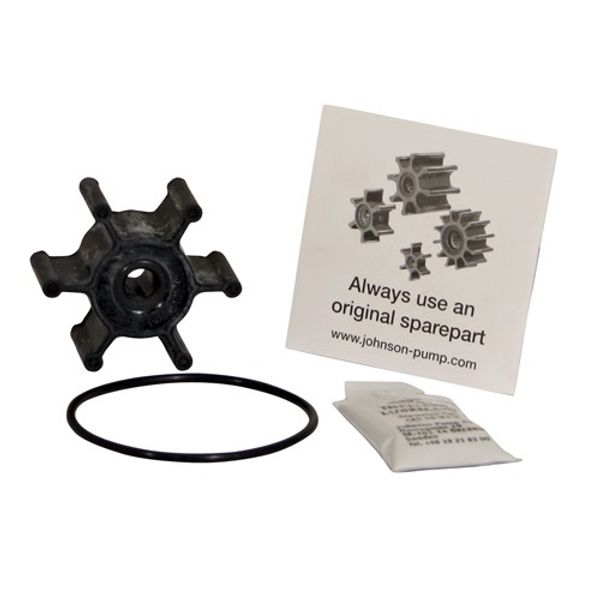

The Johnson pump flexible impeller has six blades and is supplied complete with standard gaskets, O-ring, lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

The Johnson 09-810B-1 can be used to replace the Yanmar 128397-42200 and Jabsco 18653-0001 (Europe and USA) flexible impellers. For applications containing diesel or light oils, use Johnson nitrile impeller 09-810B-9.

It is highly recommended to make sure you use an original pump impeller for your flexible impeller pump as this will ensure that the quality complies with the performance and dimension requirements for each pump type. Johnson Pump impellers are manufactured in strict compliance with the pump specifications set by the engine manufacturers they supply.

Impeller fits the following engines:

- Beta Marine Beta 10 hp, Beta 14 (13.5hp), Beta 16 hp, Beta 20 hp, Beta 25 hp, Beta 28 hp, Beta 35 hp, Beta 38 (37.5hp), BD722 (20hp), BD1005 (28hp), BF2803 (62hp), BV1305 (32hp), BV1505 (37.5hp), BV1903 (43hp), BV2203 (50hp), BZ482 (13.5hp), KC, 2KC & KR

- Bukh DV10 ME/SME

- Fischer Panda Panda-12 000 NE PMS Kubota, Panda 6000 & 9000 ND PMS Kubota & Panda 8000 NE PMS Kubota

- Ford XLD416 Escort

- Isuzu 2CA1, without PTO: 3CA1, 3CB1 & 3CD1, with PTO: 3CB1, 3CD1, 3CD1T, 3LB1 & 3LD1

- Lister Petter LPW2, LPW3

- Lombardini LDW1503M, LDW1603M, LDW2004M, LDW2204M

- Mermaid Marine Meteor & Meteorite

- Thornycroft XLD 418, 33, 50, 60 & 80

- Vetus K3, K3D, K4, L2, L3, M2.04, M2.05, M2.06, M2.C5, M2.D5, M3.09, M3.10, M3.28, M4.15, M4.17

- Watermota Alpha Canal Star 18, Alpha Sailboat 20, 30, 40 & 55, Alpha Workboat 20, 30 & 40, Sea Panther 30, 60 & 75, Sea Horse 70

- Yanmar ('97 onwards) 2GM, 2GMF, 2YM, 3GM, 3GMF & 3YM

As well as: Arona AD935PM, BMW D35/50, CT Marine XLD, Diecon D1105, D850 cooling, D905, D950, VH1200, Z600 cooling, Ekstroem K2C, K3E, K3M, K4E, KE75, Max Engel A560-2W, FK3, FK850, M560-2W, M559-2W, R30M, S30M, FJ Fay D950, D905BG2, Farymann FK3, K34, P30M, R30M, S30M, Fast Freeze 33, 50, Industrimotor 3KC1M, Ruggerini MM351, Sabb M4.130, M4.140, Sea Wasp SW5200 6.5KVA, SW6400 8KVA, SW7200 9KVA, SW9600 12KVA, WM Diesel WM18 (Kubota D722), Vythoulcas K2B, K2C, K3D, KE75, Westerbeke 10kW+.
