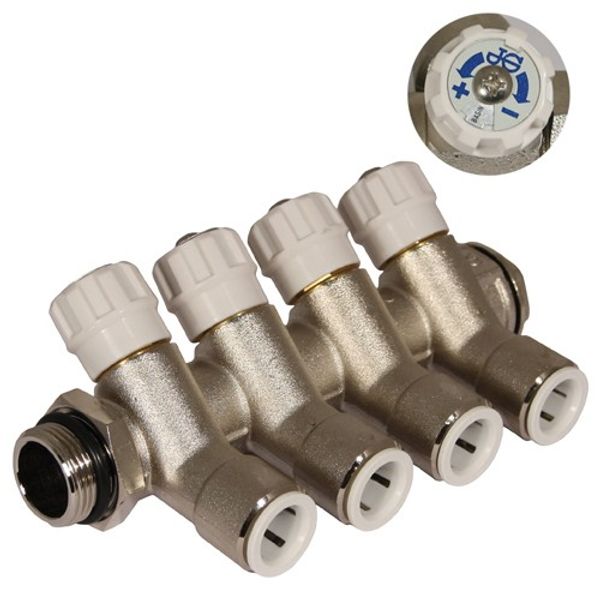

JG Speedfit Brass Manifold 4-Port White Hot/Cold



Part No: 9-84247

JG Speedfit brass manifold for centralising water distribution. The manifold enables the 3/4" BSP main supply feed to be split into four 15mm reduced outlet feeds. To install, simply push the pipe fully into the push-fit fitting. To demount the connection, push the collet towards the body of the push-fit fitting and pull the pipe to release.

The JG Speedfit brass manifold 2 port is up to 40% faster to install than traditional methods and is easier to use in confined spaces by removing the need for hot works and tools. Designed, manufactured and assembled in the UK.

Features and benefits

Brass Nickel Plated push-fit manifold

Instant push-fit connection

Install and demount in seconds without tools

Safe flame-free installation, with no hot works, glue or flux

Grip & Seal collet with stainless steel teeth and main O-Ring seal

Indices included

Compatible with Speedfit PEX and polybutylene plastic pipe (inserts required) and copper pipe

Suitable for hot and cold water (not suitable for central heating systems)



Approvals	WRAS Approved
Material	Nickel Plated Brass
Brand	JG Speedfit
Fitting	Pipe Manifold|Push-Fit Fitting
Primary Construction	Brass
Thread Connection	BSP
Thread Fitting Size	3/4"
Thread Gender	Male
Colour	Silver
Country of Origin	United Kingdom
Angle	45 Degree
Diameter Description	For 15mm Pipe
Thread Size	3/4" BSP Male
