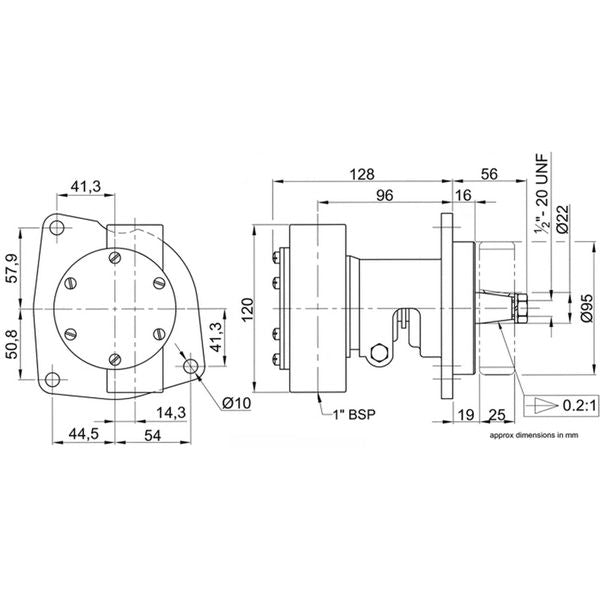

Jabsco Raw Water Pump (Ford / Flange Mounted / 1" Ports)

Part No: JAB-21140-2401

The Jabsco 21140-2401 raw water pump is a flexible impeller pump for flange mounting. The shaft is gear driven. The ports of the 21140-2001 Jabsco pump are 1" BSP female (080 spec). Nut, washer and gear not supplied.

Jabsco 21140-2401 Raw Water Pump Engine Suitability:

- Ford 6 Cylinder Dorset & Dover engines

When ordering the Jabsco 21140-2401 pump, we recommend adding a replacement impeller, use part number: JAB-17937-0001-P - always carry a spare!

Jabsco Pump 21140-2401 Spare Parts:

Part ID | Spare Parts | Part Number | Quantity

1 | Screw (3 Pack) | 91003-0090 | 6

2 | End Cover | 11831-0000 | 1

3 | Gasket | 890-0000 | 1

4 | Cam | 934-0000 | 1

5 | Screw (3 Pack) | 91004-0090 | 1

6 | Spline Plug (3 Pack) | 4345-0000 | 1

7 | Impeller & Gasket Kit | 17937-0001-P | 1

9 | Body | 10329-200 | 1

10 | Wear Plate | 4156-0000 | 1

11 | Seal Assembly | 22617-0010 | 1

15 | Nut | SP1105-03 | 1

16 | Bolt | SP1095-09 | 1

17 | Washer | SP1602-06 | 1

18 | Slinger (3 Pack) | 3286-0000 | 1

19 | Bearing Housing | 10959-0001 | 1

20 | Seal | SP2701-21B | 1

21 | Bearing | SP2600-01 | 2

24 | Retaining Ring | SP1700-250 | 1

26 | Shaft | 23377-0010 | 1

28 | Key | SP1401-10 | 1

29 | Washer | 11085 | 1

30 | Nut | 11086 | 1

31 | Helical Gear | 11084 | 1

31 | Straight Cut Gear | CW119 | 1

| Service Kit | SK229 | 1
