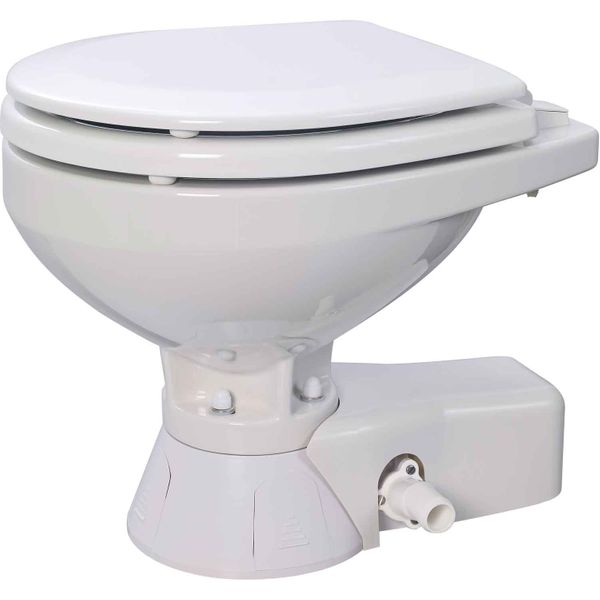

Jabsco Quiet Flush Fresh Water Electric Toilet (12V / Compact Bowl)



Part No: JAB-37045-3092

The Jabsco quiet flush marine electric toilet is suitable for fresh water flushing and connects to the vessel's existing pressurised water system. This upgraded toilet replaces Jabsco 37045-0092 toilets, featuring a new bowl profile measuring 324mm x 396mm. The 37045-3092 toilet features a compact bowl size designed for limited space installations.

The quiet flush toilets are a combination of the popular Jabsco 37010 series of marine electric toilets with the added bonus of being extra quiet to make life easier for everyone.

The Jabsco quiet flush toilet comes complete with a three way control panel to allow the operator to select a normal flush and drain cycle or to lower or raise the water level. A solenoid valve and siphon breaker assembly for connection to any existing pressurised water pump with a flow rate of 13.5lpm (3.5gpm) or more are also supplied.

Jabsco Quiet Flush Marine Toilet Features & Benefits

- Can be mounted up to 1m (3ft) below the waterline.

- Features a powerful macerator discharge pump that breaks up waste and evacuates the toilet.

- Features 2m (6ft) of white hose to neatly connect the inlet bowl fitting to the solenoid valve / siphon breaker assembly.

- Hygienic, pure white vitreous china bowl for ease of cleaning.

Jabsco Compact Seat Dimensions:

- Inside Length: 230mm

- Inside Width: 215mm

- Overall Length: 330mm

- Overall Width: 330mm



Approvals	Complies with USCG 183.410 and ISO 8846 Marine (Ignition Protection)
Fuse	25A
Height Description	355mm (14")
Material	White vitreous china bowl
Voltage Description	12V DC
Width	352mm (13.9")
Brand	Jabsco
Toilet Flush Water	Fresh Water
Toilet Bowl Size	Compact
Toilet Operation	Electric
Warranty	1 Year
Inlet Outlet Port Size	Inlet: 19mm (3/4") ID Connection, Outlet: 25mm (1") with 38mm (1-1/2") Adaptor
Model	37045-3092
Replaces	507722 - Jabsco 37045-0092 Quiet Flush Electric Toilet (12V / Compact Bowl)
Depth	415mm (16.3")
