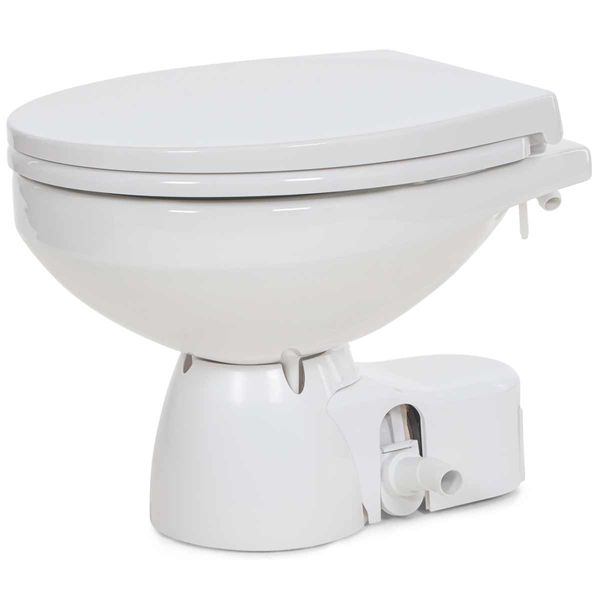

Jabsco Quiet Flush E2 Fresh Water Electric Toilet (12V / Regular Bowl)



Part No: JAB-38045-4192

The Jabsco Quiet Flush E2 marine electric toilet is suitable for fresh water flushing and is supplied with a solenoid valve and connects to the vessel's existing pressurised water system. The 38045-4192 toilet features a regular bowl size designed to replicate household toilets.

The quiet flush toilets are a combination of the popular Jabsco 37010 series of marine electric toilets with the added bonus of being extra quiet to make life easier for everyone.

The Jabsco quiet flush toilet comes complete with a three way control panel to allow the operator to select a normal flush and drain cycle or to lower or raise the water level. A solenoid valve and siphon breaker assembly for connection to any existing pressurised water pump with a flow rate of 11lpm (3gpm) or more are also supplied. As well as a Pumpgard strainer, are also supplied.

Jabsco Quiet Flush E2 Marine Toilet Features & Benefits

- Can be mounted up to 1m (3ft) below the waterline.

- Features a powerful macerator discharge pump that breaks up waste and evacuates the toilet.

- Features 2m (6ft) of white hose to neatly connect the inlet bowl fitting to the inlet pump.

- Hygienic, pure white vitreous china bowl for ease of cleaning.

Included:

- Multi-Function Touch Panel with stylish low-profile design and touch-sensitive operation. The toilet control panel features eco flush, full flush and or empty functions. Only 1-litre (1-quart) of water is consumed per flush using eco mode. This Multi-Function touch panel is designed for wet room installations. No spill 'empty' feature to leave bowl dry when boat is in motion.

- Solenoid Valve with quick-connect port fittings 15mm (1/2") inlet, 19mm (3/4") outlet, double check valve for protection against potable water contamination, integral mesh filter and mountable in any orientation.

- Straight or 90-degree discharge ports available for easy install.





Approvals	Complies with USCG 183.410 and ISO 8846 Marine (Ignition Protection)
Fuse	25A
Height Description	362mm (14.3")
Material	White vitreous china bowl
Voltage Description	12V DC
Width	366mm (14.4")
Brand	Jabsco
Toilet Flush Water	Fresh Water
Country of Origin	United Kingdom
Toilet Bowl Size	Regular
Toilet Operation	Electric
Warranty	1 Year
Inlet Outlet Port Size	Inlet: 19mm (3/4") ID Connection, Outlet: 25mm (1") with 38mm (1-1/2") adaptor
Model	38045-4192
Amps Description	Maximum Current: 20A
Depth	473mm (18.6")
