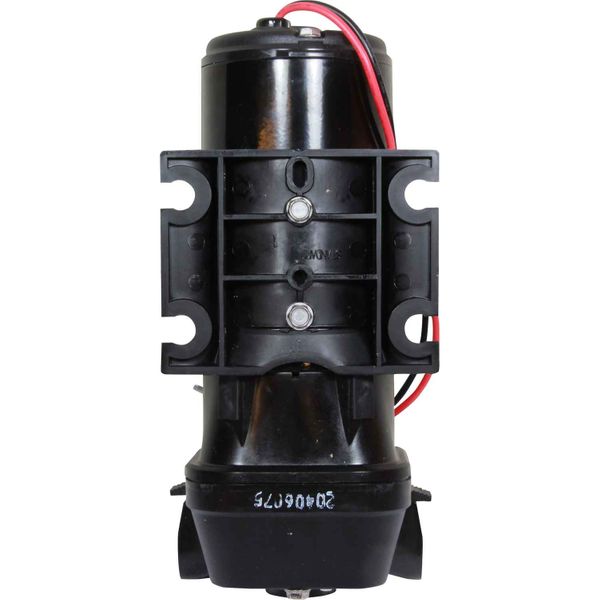

Jabsco Par Max 4 Electric Diaphragm Bilge Pump (24V / 16LPM)



Part No: JAB-31705-0094

The Jabsco new generation, continuous rated bilge pump with a waterproof coating for harsh marine environments.

The Par Max bilge pump is self-priming up to 8.2 feet (2.5 metres) which allows for mounting above wet bilges and the diaphragm design allows for extended dry running.

The Jabsco Par Max diaphragm bilge pump features built-in thermal overload protection and comes complete with Pumpgard strainer.

This Jabsco Pump 31705-0094 has the following Spare Parts:

Part ID | Spare Part | Part Number

1 | Upper Housing | 18910-4000

2 | Valve Kit | 18911-7010

3 | Diaphragm Kit | 18912-3050

4 | Lower Housing | 18915-9005

7 | Motor | - If broken replace entire pump

8 | Port Clips | 20408-000

| Port Kit | 30653-1000

| Service Kit | 18920-9053

Approvals	Complies with USCG 183.410 & ISO8846 Marine (ignition protection), ISO8849 Marine Electric Bilge Pump Standard
Flow Rate 1 Metre Head	978 LPH (258 US GPH)
Fuse	10A
Height Description	100mm (3.9")
Length	248mm (9-3/4")
Type	Diaphragm Bilge Pumps
Voltage Description	24V DC
Width	106mm (4-1/8")
Brand	Jabsco
Automatic Bilge Pumps	No
Warranty	1 Year
Hose Size	19mm / 3/4"
Maximum Recommended Head	4 Metres (13.1 Feet)
Model	31705-0094
Self Primes up to	2.5 Metres (8.2 Feet)
Inlet Outlet	For 19mm (3/4") ID Hose
Amps Description	7A
