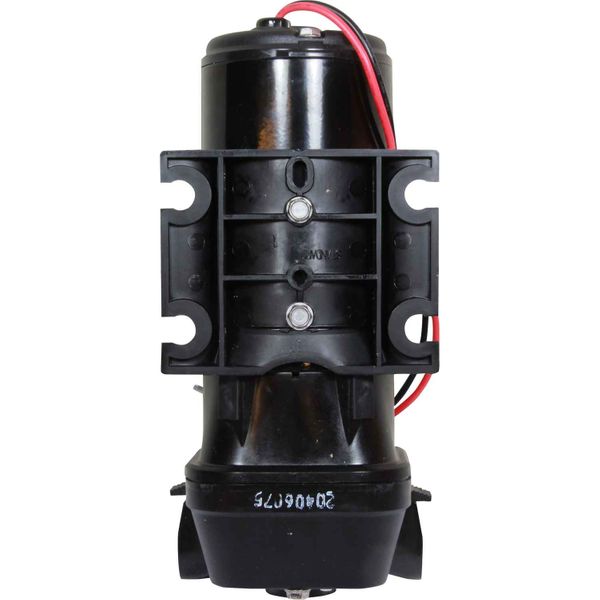

Jabsco Par Max 4 Electric Diaphragm Bilge Pump (12V / 16LPM)



Part No: JAB-31705-0092

The Jabsco new generation, continuous rated bilge pump with a waterproof coating for harsh marine environments.

The Par Max bilge pump is self-priming up to 8.2 feet (2.5 metres) which allows for mounting above wet bilges and the diaphragm design allows for extended dry running.

The Jabsco Par Max diaphragm bilge pump features built-in thermal overload protection and comes complete with Pumpgard strainer.

Jabsco Pump 31705-0092 has the following Spare Parts:

Part ID | Spare Parts | Part Number

1 | Upper Housing | 18910-4000

2 | Valve Kit | 18911-7010

3 | Diaphragm Kit | 18912-3050

4 | Lower Housing | 18915-9005

7 | Motor | (If your motor is bad replace entire pump)

8 | Port Clips | 30648-1000

| Port Kit | 30653-1000

Approvals	Complies with USCG 183.410 & ISO8846 Marine (ignition protection), ISO8849 Marine Electric Bilge Pump Standard
Flow Rate 1 Metre Head	978 LPH (258 US GPH)
Fuse	15A
Height Description	100mm (3.9")
Length	180mm (7-1/4")
Type	Diaphragm Bilge Pumps
Voltage Description	12V DC
Width	105mm (4-1/8")
Brand	Jabsco
Automatic Bilge Pumps	No
Warranty	1 Year
Hose Size	19mm / 3/4"
Maximum Recommended Head	4 Metres (13.1 Feet)
Model	31705-0092
Self Primes up to	2.5 Metres (8.2 Feet)
Inlet Outlet	For 19mm (3/4") ID Hose
Amps Description	7A
