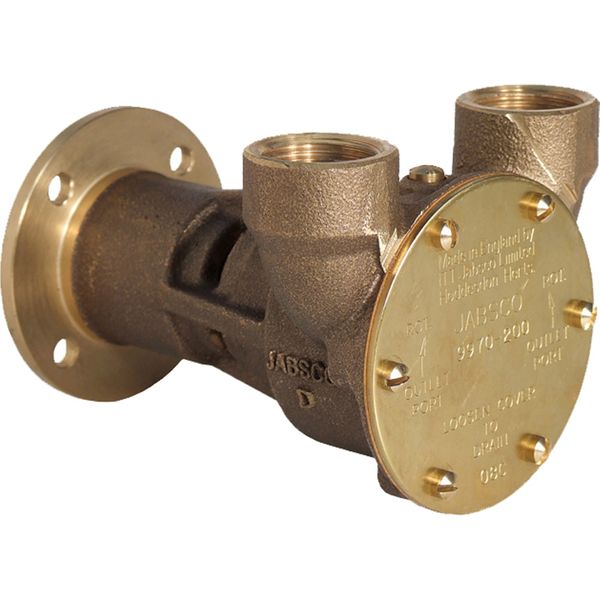

Jabsco Flange Mounted Engine Cooling Pump 9970-200 (3/4" BSP Ports)

Part No: JAB-9970-200



Jabsco flexible impeller flange mounted raw water engine cooling pump 9970-200. The Jabsco engine cooling pump is renowned for its reliability and engine cooling efficiency. To ensure your Jabsco pumps work as the manufacturer intended it is strongly advised to use genuine Jabsco impellers and spares.

Jabsco Pump 9970-200 fit the following Engines:

- Hamworthy 2SF3, 3-4 and 3-6

- Hawker Siddeley Marine FR 1, 2, 3 MGR, FR 4, 6 MGR, HA, HW, HA, HR, HR W2 and HRW4

- Lehman Power Mercraft 150 Turbo

- Perkins 4.107M, 4.108M and LL

- Valmet Oy 310 DM and 411 DM

When ordering the Jabsco 9970-200 pump, we recommend adding a replacement impeller to your order, use part number: JAB-1210-0001-P.

Jabsco 9970-200 Pump Spare Parts:

Part ID | Spare Parts | Part Number | Quantity

1 | Adaptor Ring | 3376 | 1

2 | Spacer | 9998 | 1

3 | Bearing | 92600-0130 | 2

4 | Seal | SP2701-21B | 1

5 | Slinger (3 Pack) | 3286-0000 | 1

6 | Wearplate | 7883-0000 | 1

7 | Screw (3 Pack) | 91003-0010 | 1

8 | Cam | 490-0001 | 1

9 | Gasket | 3298-0000 | 1

10 | End Cover | 11830-0000 | 1

11 | Spline Plug (3 Pack) | 4345-0000 | 1

12 | Screw (3 Pack) | 91002-0020 | 6

13 | Impeller & Gasket Kit | 1210-0001-P | 1

14 | Retaining Ring (3 Pack) | 91700-0620 | 1

15 | Seal Assembly | 22617-0010 | 1

19 | Shaft | 9977 | 1

20 | Coupling | 3278-0000 | 1

| Service Kit | SK239 | 1



Height Description	86mm (3-3/8")
Length	142mm (5-5/8")
Series	9970 Series
Size	040 Pump
Type	Engine Cooling Pumps
Width	100mm (4")
Brand	Jabsco
Suitable For	Lister
Warranty	1 Year
Model	9970-200
Mounting Description	Flange Mount
Replacement Impeller	JAB-1210-0001-P
Inlet Outlet	3/4" BSP Female
