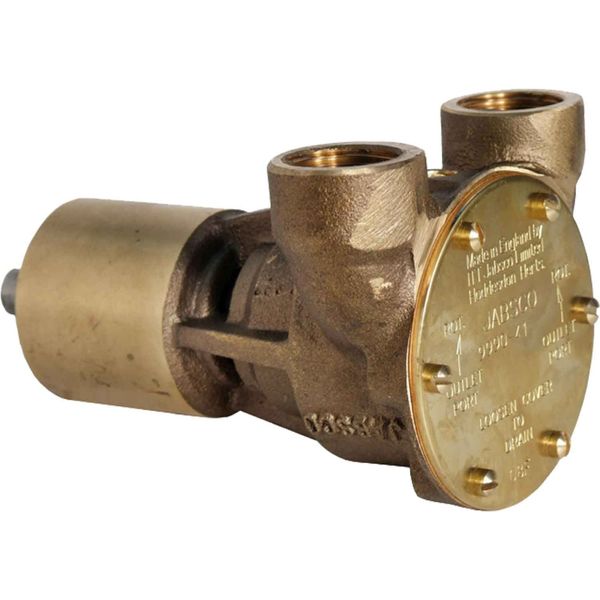

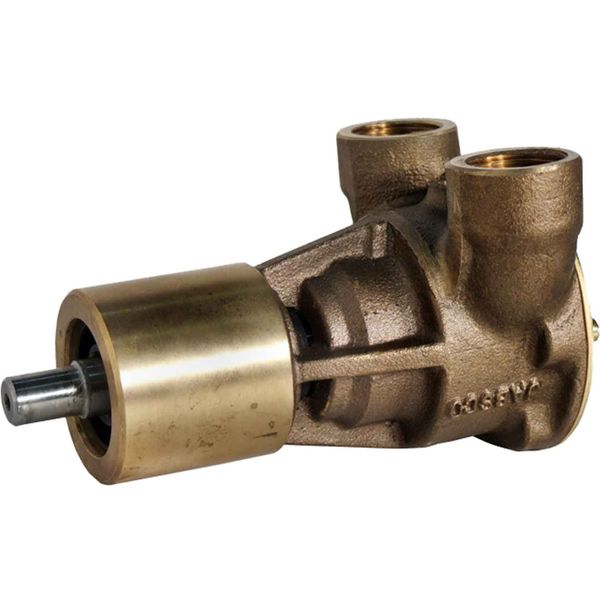

Jabsco Engine Cooling Pump 9990-41 (3/4" NPT / Flange Mount)

Part No: JAB-9990-41

Jabsco 9990-41 flexible impeller flange mounted pump with 3/4" NPT female threaded ports. The Jabsco 9990-41 engine cooling pump replaces Jabsco 9990-21 pumps.

Jabsco Pump 9990-41 fits the following engines: Perkins 6.354, M200, M240 and M275

When ordering the Jabsco 9990-41 pump, we recommend adding a replacement impeller to your order, use part number: JAB-1210-0001-P - always carry a spare!

Jabsco 9990-41 Pump Spare Parts:

Part ID | Spare Parts | Part Number | Quantity

1 | Woodruff Key | 9999 | 1

2 | Retaining Ring (3 Pack) | 18714-0000 | 1

3 | Bearing | SP2601-39B | 2

4 | Slinger (3 Pack) | 3286-0000 | 1

6 | Seal Assembly | 22617-0010 | 1

7 | Retaining Ring (3 Pack) | 91700-0620 | 1

8 | Cam | 490-0001 | 1

9 | Screw (3 Pack) | 91003-0010 | 1

10 | Spline Plug (3 Pack) | 4345-0000 | 1

11 | End Cover | 11830-0000 | 1

12 | Shaft | 9997-01 | 1

13 | Seal | SP2701-15 | 1

14 | Retaining Ring | SP1700-249 | 1

15 | Spacer | 9998 | 1

16 | Seal | SP2701-21B | 1

19 | Wearplate | 7883-0000 | 1

20 | Impeller & Gasket Kit | 1210-0001-P | 1

21 | Gasket | 3298-0000 | 1

22 | Screw (3 Pack) | 91002-0020 | 6

| Service Kit | SK239 | 1
