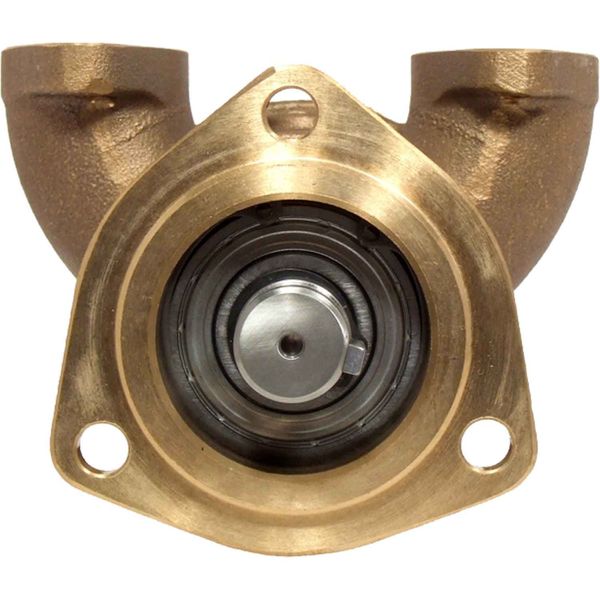

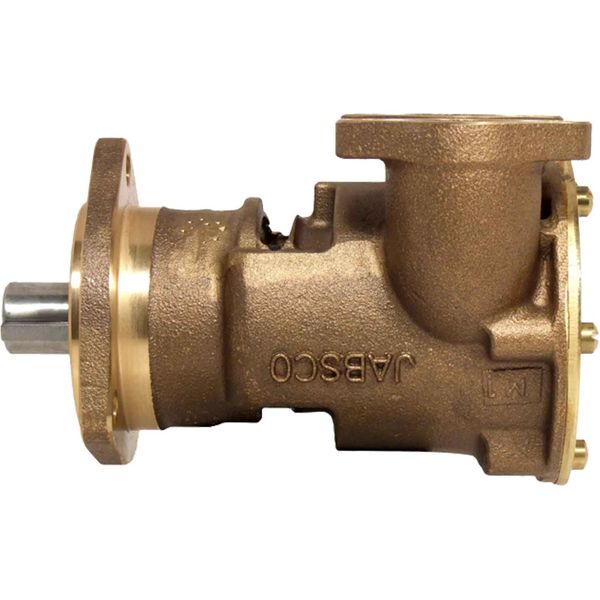

Jabsco Engine Cooling Pump 9700-04 (1" Flanged / Flange Mount)

Part No: JAB-9700-04

Jabsco 9700-04 flexible impeller flange mounted pump, with 1" flanged ports.

This Jabsco Pump 9700-04 is suitable for the following Engines: Perkins 6.354 and 6.354M

When ordering the Jabsco 9700-04 pump, we recommend adding a replacement impeller to your order, use part number: JAB-17937-0001-P.

This Jabsco Pump 9700-04 has the following Spare Parts:

Part ID | Spare Parts | Part Number | Quantity

1 | Screw (3 Pack) | 91003-0010 | 6

2 | Spline Plug (3 Pack) | 4345-0000 | 1

3 | Screw | 91004-0110 | 1

4 | Cam | 3255-0000 | 1

5 | Wear Plate | 4156-0000 | 1

7 | Slinger (3 Pack) | 3180-0000 | 1

8 | Retaining Ring (3 Pack) | 18713-0000 | 1

10 | Shaft | 9707 | 1

13 | End Cover | 11831-0000 | 1

14 | Gasket | 890-0000 | 1

15 | Impeller & Gasket Kit | 17937-0001-P | 1

16 | Retaining Ring (3 Pack) | 91700-0620 | 1

18 | Seal Assembly | 22645-0000 | 1

19 | Seal | 913-0000 | 1

20 | Bearing | 92600-0060 | 1

21 | Retaining Ring | SP1701-185 | 1

23 | Key | SP1402-01 | 1

| Service Kit | SK238 | 1

| Dowel Pin | SP3100-10 | 1

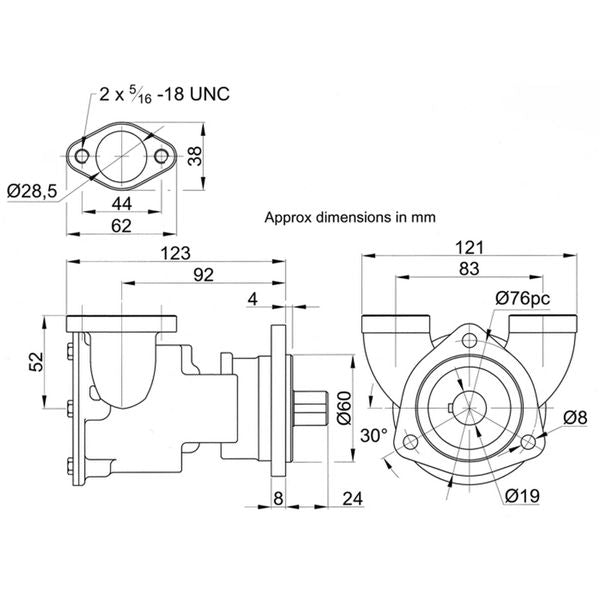

Length	147mm
Series	9700 Series
Size	080 Pump
Type	Engine Cooling Pumps
Width	121mm
Brand	Jabsco
Suitable For	Perkins
Warranty	1 Year
Model	9700-04
Mounting Description	Flange Mount
Repair Kit	JAB-SK238
Replacement Impeller	JAB-17937-0001-P
Inlet Outlet	1" Flange Ports
