Jabsco Engine Cooling Pump 50690-0101A (45mm Hose / Flange Mount)

Part No: JAB-50690-0101A

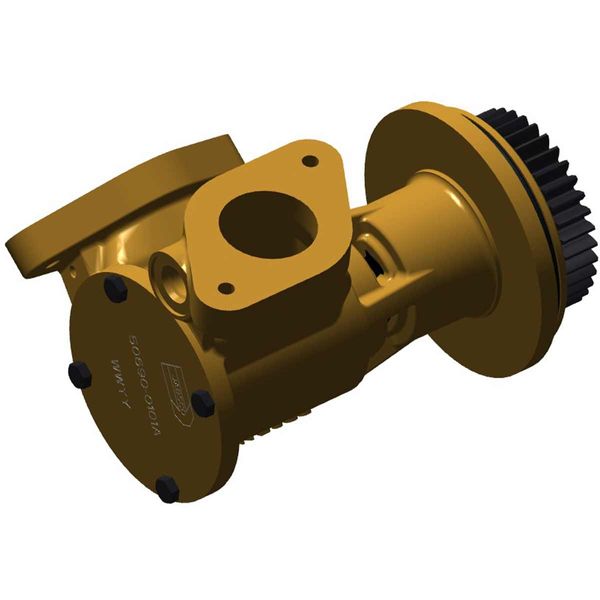

Jabsco 50690-0101A flexible impeller flange mounted pump, with ports for 45mm (1-3/4") ID hose. The Jabsco engine cooling pump is the resale version of the Caterpillar 3951646 and 395-1646 pumps.

Jabsco pump 50690-0101A fits Caterpillar C7.1 and C4.4 engines.

When ordering the 50690-0101A pump, we recommend adding a replacement impeller to your order, use part number: JAB-17018-1101 - always carry a spare!

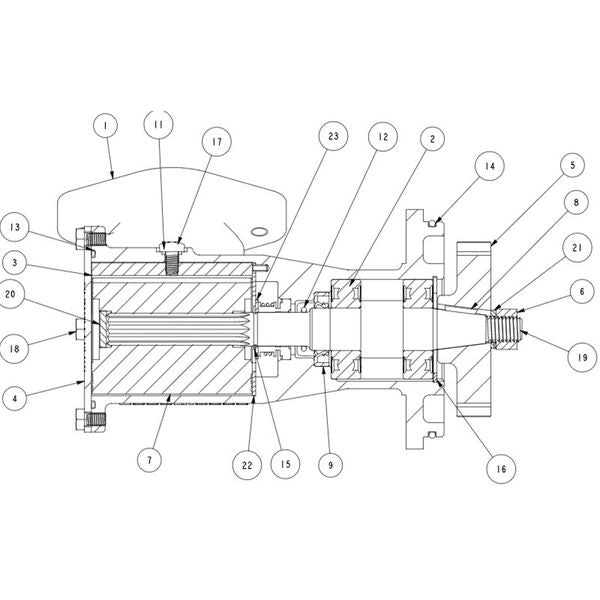

Jabsco Size-120 Pump 50690-0101A Spare Parts:

Part ID | Spare Part | Part Number | Quantity

2 | Bearing | SP2601-0468 | 2

3 | Cam | 50392-0000 | 1

4 | End Cover | 53085-0000 | 1

7 | Impeller | 17018-1101B | 1

10 | Seal Assembly | 96080-0626B | 1

11 | O-Ring | X4020-106A | 1

12 | O-Ring | X4020-215A | 1

13 | O-Ring (3 Pack) | 18753-0263 | 1

14 | O-Ring | X4020-394A | 1

18 | End Cover Screws (3 Pack) | X3001-176FB | 2

22 | Wear Plate | 4156-0000 | 1

23 | Washer | 29706-0000 | 1

| Minor Service Kit | SK386-0301 | 1
