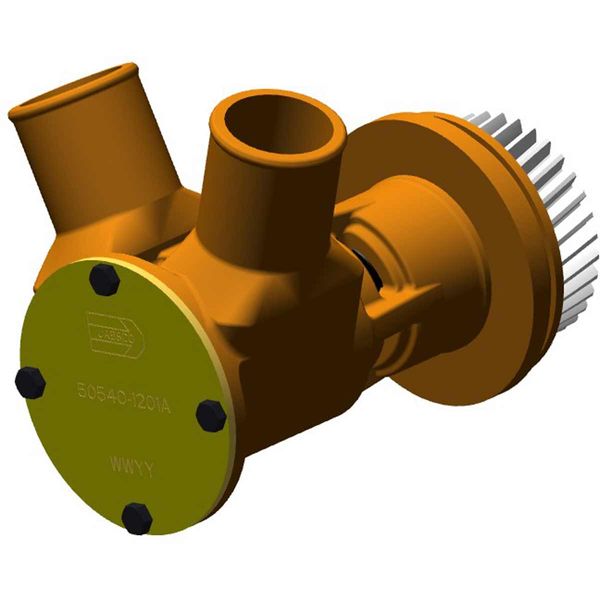

Jabsco Engine Cooling Pump 50540-1201A (45mm Hose / Flange Mount)

Part No: JAB-50540-1201A

Jabsco 50540-1201A flexible impeller flange mounted pump, with ports for 45mm (1-3/4") ID hose. The Jabsco engine cooling pump is the resale version of the Caterpillar 4255415 and 425-5415 pumps.

Jabsco pump 50540-1201A fits Caterpillar C6.6 engines.

When ordering the 50540-1201A pump, we recommend adding a replacement impeller to your order, use part number: JAB-17018-1101 - always carry a spare!

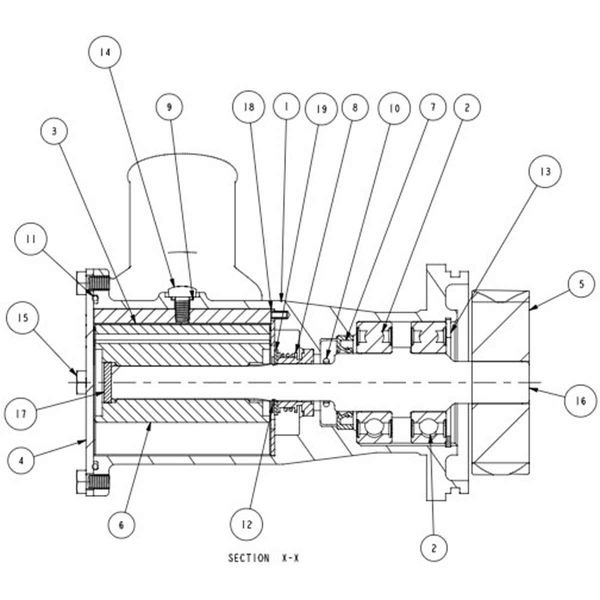

Jabsco Size-120 Pump 50540-1201A Spare Parts:

Part ID | Spare Part | Part Number | Quantity

2 | Bearing | 92600-0020 | 2

3 | Cam | 50392-0000 | 1

4 | End Cover | 53085-0000 | 1

6 | Impeller | 17018-1101B | 1

7 | Seal | SP2701-0903 | 1

8 | Seal Assembly | 96080-0626B | 1

9 | O-Ring | X4020-106A | 1

10 | O-Ring | X4020-215A | 1

11 | O-Ring (3 Pack) | 18753-0263 | 1

15 | End Cover Screws (3Pack) | X3001-176FB | 2

18 | Wear Plate | 4156-0000 | 1

19 | Washer | 29706-0000 | 1
