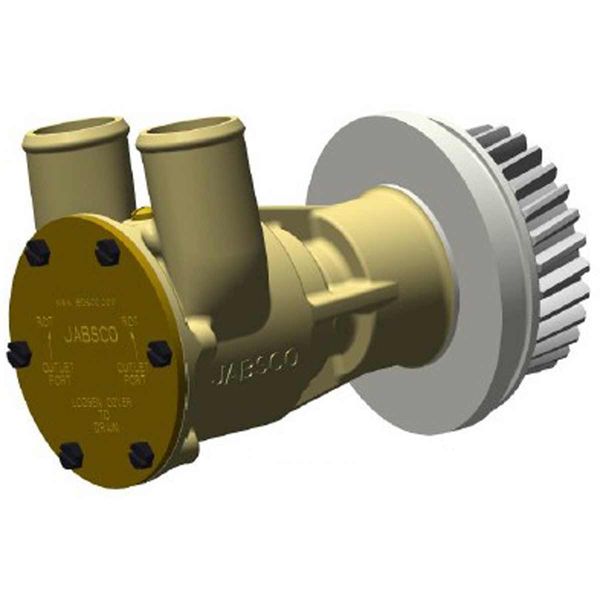

Jabsco Engine Cooling Pump 29630-1301A (32mm Hose / Flange Mount)

Part No: JAB-29630-1301A

Jabsco 29630-1301A flexible impeller flange mounted pump, with ports for 32mm (1-1/4") ID hose. The Jabsco engine cooling pump is the aftermarket version of the Caterpillar 4255411 and 425-5411 pumps.

Jabsco pump 29630-1301A fits Caterpillar engines 3054, 3054B and 3056.

When ordering the 29630-1301A pump, we recommend adding a replacement impeller to your order, use part number: JAB-920-0001-P - always carry a spare!

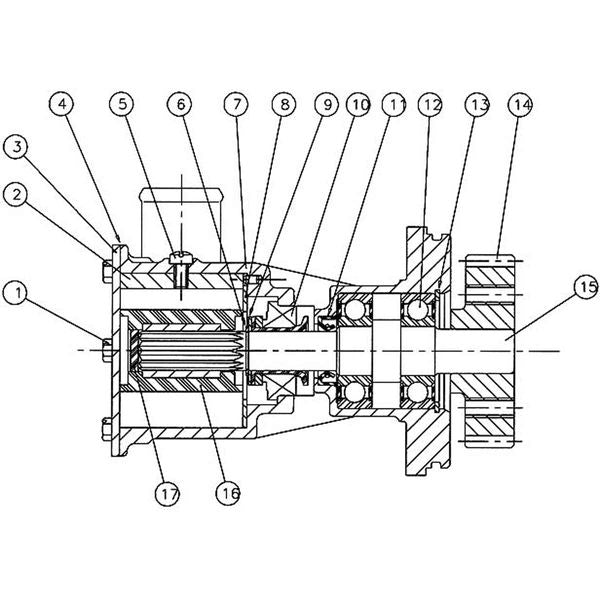

Jabsco Size-80 Pump 29630-1301A Spare Parts:

Part ID | Spare Part | Part Number | Quantity

1 | Part of Service Kit | 6

2 | Cam | 934-0000 | 1

3 | End Cover | 11831-0000 | 1

4 | Gasket | 890-0000 | 1

5 | Screw (3 Pack) | 91004-0090 | 1

6 | Retaining Ring (3 Pack) | 91700-0620 | 1

8 | Wear Plate | 4156-0000 | 1

9 | Washer | 29706-0000 | 1

10 | Seal Assembly | 96080-0626B | 1

11 | Seal | SP2700-1027B | 1

12 | Bearing | SP2601-0468 | 2

13 | Retaining Ring | SP1701-438 | 1

15 | Shaft | 29637-0100B | 1

16 | Impeller & Gasket Kit | 920-0001-P | 1

17 | Spline Plug (3 Pack) | 4345-0000 | 1

| Service Kit | SK385-0701 | 1
