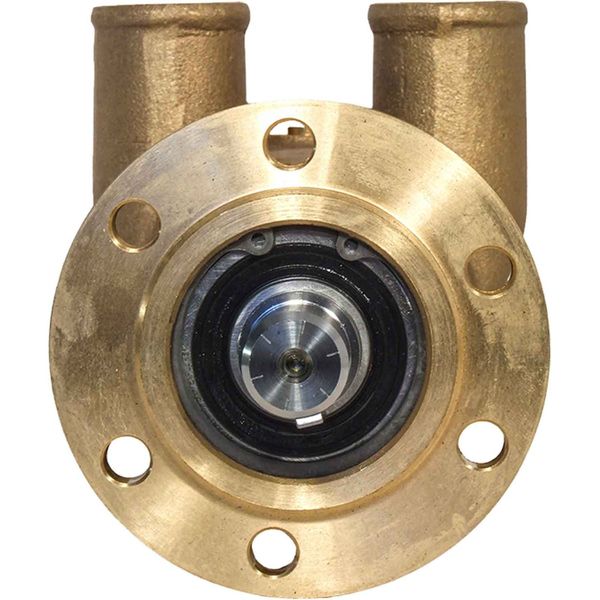

Jabsco Engine Cooling Pump 29600-1001 (32mm Hose / Flange Mount)

Part No: JAB-29600-1001

Jabsco 29600-1001 flexible impeller flange mounted pump, with ports for 32mm (1-1/4") ID hose. The Jabsco engine cooling pump replaces Jabsco 9700-21 pumps.

Jabsco pump 29600-1001 fits the following engines:

- Gardner 6 LXB

- Scania D5 and DS5

- Aifo Iveco CP 3SM, OMCP 3M, 8061SM, 8061SRM, 8141 M, 8141 SRM, 8210 M, 8361 M, 8361 SM and 8361 SRM

- Pegaso 9130 / S

- Valmet 411, 611 CM and CSM

- VM-Motori 114 / 6 MH

When ordering the 29460-1701 pump, we recommend adding a replacement impeller to your order, use part number: JAB-17937-0001-P - always carry a spare!

Jabsco 29600-1001 Pump Spare Parts:

Part ID | Spare Part | Part Number | Quantity

1 | Screw | SP1003-011 | 6

2 | End Cover | 11831-0000 | 1

3 | Gasket | 890-0000 | 1

4 | Cam | 934-0000 | 1

5 | Screw (3 Pack) | 91004-0090 | 1

6 | Spline Plug (3 Pack) | 4345-0000 | 1

7 | Impeller & Gasket Kit | 17937-0001-P | 1

10 | Wear Plate | 4156-0000 | 1

11 | Seal Assembly | 22646-0000B | 1

20 | Seal | SP2700-1027B | 1

21 | Bearing | 92600-0500 | 2

23 | Retaining Ring | SP1701-4437 | 1

24 | Retaining Ring | SP1701-438 | 1

26 | Shaft | 29607-0000 | 1

| Service Kit | SK385-0101 | 1
