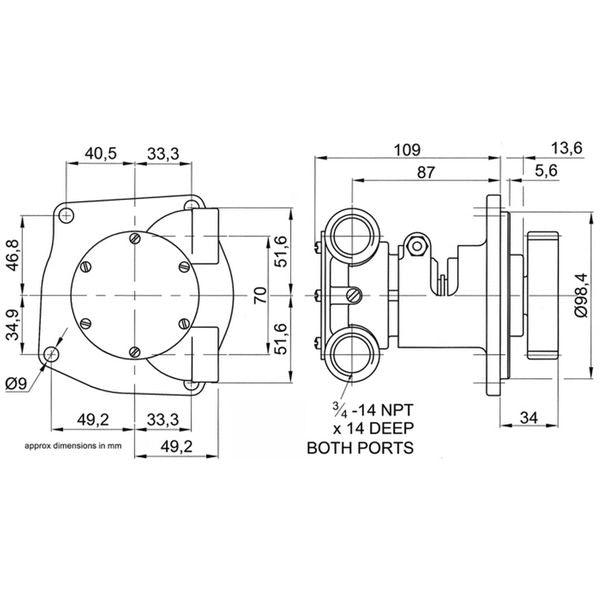

Jabsco Engine Cooling Pump 10970 (3/4" NPT / Flange Mount)

Part No: JAB-10970

Jabsco 10970 flexible impeller flange mounted pump will replace Johnson 10-24215-1 pumps.

Jabsco 10970 Pump Engine Suitability:

- Lancing Marine 4.236 Engines

- Perkins T4.236 Engines

The Jabsco 10970 pump is fitted as standard on UK marinised Perkins 4.236 engines, including Lancing marinised 4.236 engines.

When ordering the Jabsco 10970 pump, we recommend adding a replacement impeller, use part number: JAB-1210-0001-P - always carry a spare!

Jabsco 10970 Spare Parts:

Key | Spare Parts | Part Number | Quantity

1 | End Cover | 11830-0000 | 1

2 | Gasket | 3298-0000 | 1

3 | Cam | 490-0001 | 1

4 | Screw (3 Pack) | 91003-0010 | 1

5 | Wearplate | 7883-0000 | 1

6 | Seal Assembly | 22617-0010 | 1

9 | Seal | SP2701-21B | 1

10 | Bearing | SP2601-39B | 2

11 | Spacer | 9998 | 1

13 | Screw (3 Pack) | 91002-0020 | 6

14 | Spline Plug | 4345-0000 | 1

16 | Impeller & Gasket Kit | 1210-0001-P | 1

17 | Retaining Ring (3 Pack) | 91700-0620 | 1

18 | Bolt | SP1095-09 | 1

19 | Washer | SP1602-06 | 1

20 | Nut | SP1105-03 | 1

21 | Slinger (3 Pack) | 3286-0000 | 1

22 | Shaft | 9977-01 | 1

23 | Bearing Housing | 10976 | 1

24 | Retaining Ring (3 Pack) | 18714-0000 | 1

| Service Kit | SK268-01 | 1

Size	040 Pump
Type	Engine Cooling Pumps
Brand	Jabsco
Suitable For	Perkins
Warranty	1 Year
Drive Type Description	Gear Driven
Model	10970
Mounting Description	Flange Mount
Replacement Impeller	JAB-1210-0001-P
Replaces	Johnson 10-24215-1 Pumps
Inlet Outlet	3/4" NPT Female
