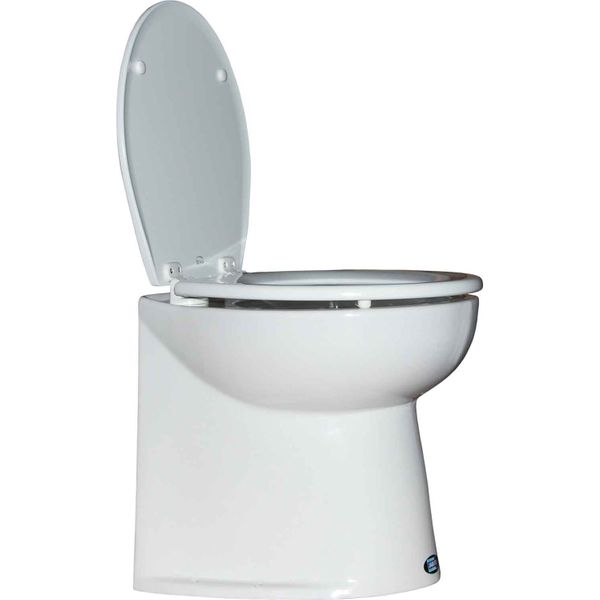

Jabsco Deluxe Flush Fresh Water Electric Toilet (24V / 17" / Straight)
Jabsco Deluxe Flush Fresh Water Electric Toilet (24V / 17" / Straight)
Jabsco Deluxe Flush Fresh Water Electric Toilet (24V / 17" / Straight)
Part No: 507764
The Jabsco deluxe flush marine electric toilet is suitable for fresh water flushing and connects to the vessel's existing pressurised water system. The toilet features a regular sized bowl designed to replicate household toilets.
The deluxe flush toilets are a top of the range electric toilet for the marine industry, giving the luxury feel of a domestic toilet with a stylish and compact design.
The Jabsco deluxe flush toilet has elegant bowl styling which conceals all plumbing and wiring. The Jabsco deluxe flush toilet comes complete with a one touch control panel to choose operation, including the option of leaving the toilet dry. A solenoid valve and siphon breaker assembly for connection to any existing pressurised water pump with a flow rate of 11lpm or more are also supplied.
Jabsco Deluxe Flush Marine Toilet Features & Benefits
- Can be mounted up to 1m (3ft) below the waterline.
- Features a powerful macerator discharge pump that breaks up waste and evacuates the toilet.
- Features a 17" straight vertical back to fit against a flat bulkhead.
- Hygienic, pure white vitreous china bowl for ease of cleaning.
Approvals | Complies with USCG 183.410 and ISO 8846 Marine (Ignition Protection). |
Fuse | 15A |
Height Description | 440mm (17.3") |
Material | White vitreous china bowl |
Voltage Description | 24V DC |
Width | 370mm (14-5/8") |
Brand | Jabsco |
Toilet Flush Water | Fresh Water |
Toilet Bowl Size | Regular |
Toilet Operation | Electric |
Warranty | 1 Year |
Inlet Outlet Port Size | Inlet: 19mm (3/4") ID Connection, Outlet: 38mm (1-1/2") ID Connection |
Model | 58040-2024 |
Depth | 445mm (17-1/2") |
