Jabsco CW404 Foot Mount Engine Cooling Pump (3/4" BSP / 159mm Pulley)

Jabsco CW404 Foot Mount Engine Cooling Pump (3/4" BSP / 159mm Pulley)

£490.64 GBP
£490.64 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Jabsco CW404 Foot Mount Engine Cooling Pump (3/4" BSP / 159mm Pulley)


Part No: JAB-CW404

This Jabsco pump kit contains a pump with a pulley and is designed to offer a replacement for the Jabsco 6490-253 and 6490-223 pumps. Variations in the plane of the pulley drive on some engines may require enlargement of pedestal bolt slots in the new CW404 pump.

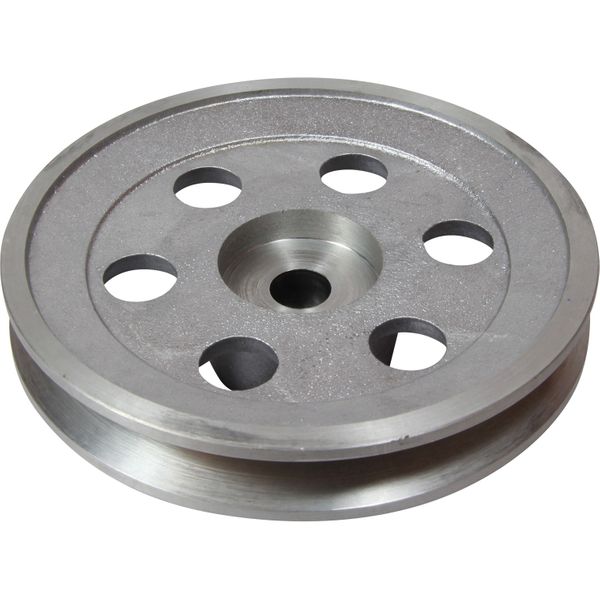

The Jabsco CW404 has a 159mm (6-1/4") diameter pulley for A or B section belt.

Output: Nominal 40 litres / min at 1500rpm.

Connections: 3/4" BSP threaded ports.



Flow Rate Description 40 LPM at 1500 RPM
Size Pulley Size: 159mm pulley for A or B section
Type Engine Cooling Pumps
Brand Jabsco
Warranty 1 Year
Drive Type Description Pulley Driven
Impeller Fitted JAB-1210-0001-P
Model CW404
Mounting Description Pedestal Mount
Replaces Jabsco 6490-253 & 6490-223 pumps.
Inlet Outlet 3/4" BSP Female
