Jabsco

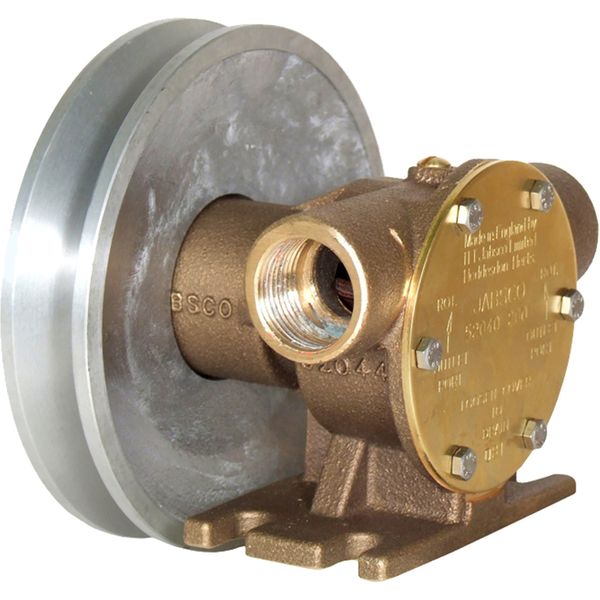

Jabsco CW403 Foot Mount Engine Cooling Pump (3/4" BSP / 127mm Pulley)
Jabsco CW403 Foot Mount Engine Cooling Pump (3/4" BSP / 127mm Pulley)
Regular price
£567.95 GBP
Regular price
£473.29 GBP
Sale price
£567.95 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Jabsco CW403 Foot Mount Engine Cooling Pump (3/4" BSP / 127mm Pulley)
Part No: JAB-CW403
This Jabsco pump kit contains a pump with a pulley and is designed to offer a replacement for the Jabsco 6490-222 and 6490-252 pumps. The pump mounting and pulley drive require no alteration, use the rear pair of bolt slots in the CW403 pump pedestal.
The Jabsco CW403 has a 127mm (5") diameter pulley for A or B section belt.
Output: Nominal 40 litres / min at 1500rpm.
Flow Rate Description
40 LPM at 1500 RPM
Height Description
64mm To Port Centre
Length
128mm
Output
40 lpm @1500rpm
Size
040 Pump
Type
Engine Cooling Pumps
Width
106mm
Brand
Jabsco
Warranty
1 Year
Connections Description
3/4" BSPF
Diameter Description
17mm
Dimensions
Pulley Size: 127mm (5") Pulley for A or B section
Drive Type Description
Pulley Driven
Impeller Fitted
JAB-1210-0001-P
Model
CW403
Mounting Description
Pedestal Mount
Replaces
Jabsco 6490-252 & 6490-222 pumps.
Self Primes up to
2.4 Meters (7.9 Feet)
Inlet Outlet
3/4" BSP Female
Depth
240mm
Share
View full details
Jabsco CW403 Foot Mount Engine Cooling Pump (3/4" BSP / 127mm Pulley)
Part No: JAB-CW403
This Jabsco pump kit contains a pump with a pulley and is designed to offer a replacement for the Jabsco 6490-222 and 6490-252 pumps. The pump mounting and pulley drive require no alteration, use the rear pair of bolt slots in the CW403 pump pedestal.
The Jabsco CW403 has a 127mm (5") diameter pulley for A or B section belt.
Output: Nominal 40 litres / min at 1500rpm.
| Flow Rate Description | 40 LPM at 1500 RPM |
| Height Description | 64mm To Port Centre |
| Length | 128mm |
| Output | 40 lpm @1500rpm |
| Size | 040 Pump |
| Type | Engine Cooling Pumps |
| Width | 106mm |
| Brand | Jabsco |
| Warranty | 1 Year |
| Connections Description | 3/4" BSPF |
| Diameter Description | 17mm |
| Dimensions | Pulley Size: 127mm (5") Pulley for A or B section |
| Drive Type Description | Pulley Driven |
| Impeller Fitted | JAB-1210-0001-P |
| Model | CW403 |
| Mounting Description | Pedestal Mount |
| Replaces | Jabsco 6490-252 & 6490-222 pumps. |
| Self Primes up to | 2.4 Meters (7.9 Feet) |
| Inlet Outlet | 3/4" BSP Female |
| Depth | 240mm |
