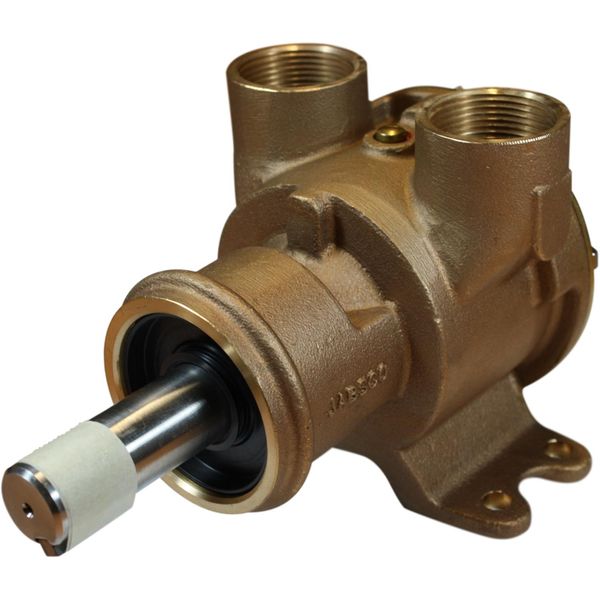

Jabsco 7420-0101 Foot Mounted Engine Cooling Pump (1-1/4" NPT)

Part No: JAB-7420-0101

Jabsco 7420-0101 flexible impeller foot mounted pump for engine cooling applications.

Jabsco Engine Cooling Pump for Cummins NT 855M Engines.

The Jabsco engine cooling pump is well known for its reliability and engine cooling efficiency. To ensure your Jabsco pumps work as the manufacturer intended it is strongly advised to use only genuine Jabsco pump impellers and pump.

Jabsco pump 7420-0101 spare parts:

Part ID | Spare Part | Part Number | Quantity

1 | Screw (3 Pack) | 91005-0040 | 5

2 | End Cover | 12062-0000 | 1

3 | Gasket | 816-0000 | 1

4 | Impeller | 836-0001B | 1

6 | Wearplate | 2574-0000 | 1

7 | Screw (3 Pack) | 91005-0040 | 1

8 | Cam | 834-0001 | 1

11 | Slinger (3 Pack) | 3181-0000 | 1

12 | Seal | 817-0000 | 1

13 | Bearing | 92600-0040 | 1

14 | Retaining Ring Kit | 18712-0000 | 1

15 | Retaining Ring (3 Pack) | 18711-0000 | 1

16 | Seal | 818-0000 | 1

17 | Seal Assembly | 21849 | 1

18 | Shaft | 9527 | 1

19 | Key | 9214-0000 | 1

| Dowel Pin | 2575 | 1



Series	7420 Series
Size	200 Pump
Type	Engine Cooling Pumps
Brand	Jabsco
Warranty	1 Year
Drive Type Description	Pulley Driven
Impeller Fitted	JAB-17935-0001
Model	7420-0101
Mounting Description	Foot Mount
Replaces	Jabsco Pump 7420-0004
Inlet Outlet	1-1/4" NPT Female
