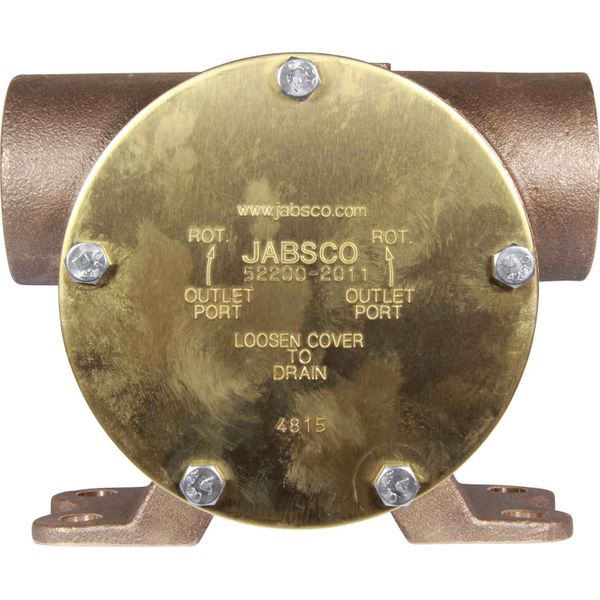

Jabsco 52200-2011 Foot Mounted Engine Cooling Pump (1-1/2" BSP)

Part No: JAB-52200-2011



The Jabsco 52200-2011 engine cooling pump has 1-1/2" BSP connections and is suitable for foot mounting.

This pump is suitable for the following engines: Thornycroft 760 / AVT 1100, Kelvin DB Series and Schwarting Mercedes S 424.

The Jabsco 52200-2011 pump replaces Jabsco 6400-207 and 52200-2001 pumps and Johnson 10-13021-1 pumps.

When ordering this Jabsco engine cooling pump, we recommend adding a replacement impeller, use part number: JAB-17935-0001 - always carry a spare!

The Jabsco Pump 52200-2011 has the following Spare Parts:

Part ID | Spare Parts | Part Number | Quantity

1 | Screw | X3001-176FB | 5

2 | End Cover | 12062-0000 | 1

3 | Gasket | 816-0000 | 1

4 | Impeller | 17935-0001B | 1

5 | Wear Plate | 2574-0000 | 1

7 | Cam | 834-0001 | 1

8 | Screw (3 Pack) | 91005-0040 | 1

9 | Screw | X3003-178F | 3

10 | Slinger (3 Pack) | 3181-0000 | 1

11 | Seal | 817-0000 | 1

12 | Seal | SP2701-1013B | 1

13 | Clutch Adaptor | 52201-0200B | 1

14 | Seal Assembly | 21849 | 1

15 | Shaft | 52207-0000 | 1

16 | Key | X4000-567A | 1

17 | Bearing | 92600-0040 | 1

18 | Retaining Ring (3 Pack) | 18711-0000 | 1

| Service Kit | SK407-0011 | 1

| Spline Plug | 4346 | 1





Flow Rate Description	200 LPM at 1500 RPM
Height Description	93mm to port centre
Length	203mm
Series	52200 Series
Size	200 Pump
Type	Engine Cooling Pumps
Width	150mm
Brand	Jabsco
Suitable For	Thornycroft
Warranty	1 Year
Drive Type Description	Pulley Driven
Impeller Fitted	JAB-17935-0001
Model	52200-2011
Mounting Description	Pedestal Mount
Replaces	Jabsco 6400-207 & 52200-2001 Pumps, Johnson 10-13021-1 Pump
Self Primes up to	3 Metres (9.8 Feet)
Inlet Outlet	1-1/2" BSP Female
