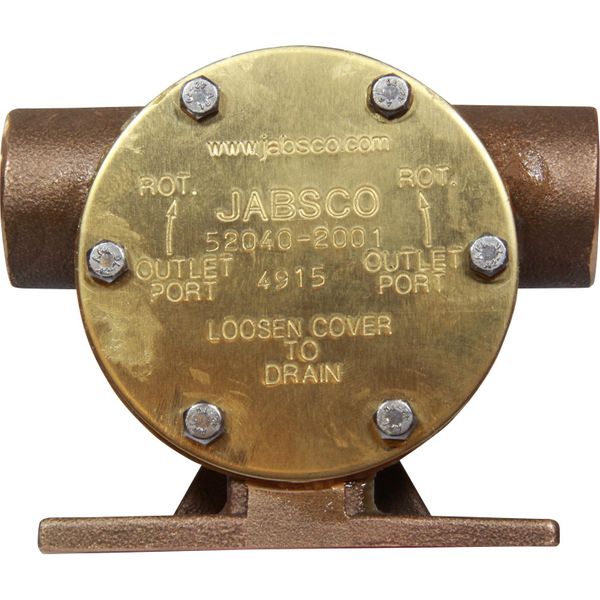

Jabsco 52040-2001 Foot Mounted Engine Cooling Pump (3/4" BSP)

Part No: JAB-52040-2001

This is the latest version of the popular Jabsco 3/4" BSP foot mounted pedestal pump.

Extremely popular with many engine marinisers, this is now the only replacement from Jabsco for the once popular gland pump 4900-200 and the earlier foot mounted 21820-200 pump.

Jabsco 52040-2001 pump fits engines:

- Buroli Escort XLD

- Caterpillar Marine Power 4.90

- FNM 1.3 ATI

- Ford FSD 425

- Lancing Marine Ford 4-Cylinder, Perkins 6.354

- Mermaid Marine Meermin, Merlin FSD & Minuet

- Tempest Diesel Captain 1.5 & 1.8

- Thornycroft 90, 90E, 108, 108/2, RF LD-220

When ordering the Jabsco 52040-2001 pump, we recommend adding a replacement impeller to your order, use part number: JAB-1210-0001-P - always carry a spare!

Jabsco 52040-2001 pump spares:

Part ID | Spare Parts | Part Number | Quantity

1 | Screw | X3001-095F | 6

2 | End Cover | 11830-0000 | 1

3 | Gasket | 3298-0000 | 1

4 | Impeller & Gasket Kit | 1210-0001-P | 1

5 | Seal | SP2700-1027B | 1

6 | O-Ring | X4020-215A | 1

7 | Cam | 490-0001 | 1

8 | Screw (3 Pack) | 91003-0010 | 1

10 | Seal | SP2700-1027B | 1

12 | Seal | SP2701-1015B | 1

13 | Bearing | SP2601-0451B | 1

15 | Shaft | 52047-0000 | 1

16 | Bearing | SP2601-0451B | 1

| Service Kit | SK384-0101 | 1

| Spline Plug (3 Pack) | 4345-0000 | 1
