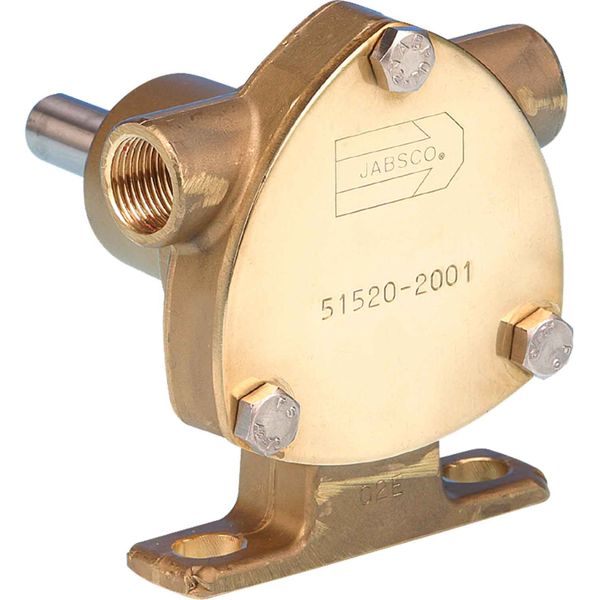

Jabsco 51520-2001 Foot Mounted Engine Cooling Pump (3/8" BSP)

Part No: JAB-51520-2001

Jabsco engine cooling pump 51520-2001 is operated by a pulley. The pump has 3/8" BSP ports and is foot mounted.

Jabsco 51520-2001 pump fits engines:

- Farymann Diesel K 34

- Nanni Diesel P 30, R 30, S 30

- Westerbeke Generator Sets 10+ KW

- Tempest Diesel 1622 S

When ordering the Jabsco 52010-2001 pump, we recommend carrying a spare Impeller Kit, Part Number: JAB-653-0001-P.

Jabsco pump 52010-2001 spare parts:

Part ID | Spare Part | Part Number | Quantity

1 | Bearing | SP2601-0457 | 2

2 | Bearing Shield | 51516-0000 | 1

4 | End Cover Kit | SK501-0000 | 1

5 | Screw | X3001-147F | 3

6 | Impeller & Gasket Kit | 653-0001-P | 1

7 | Seal Assembly | 96080-6024 | 1

9 | Retaining Ring | SP1701-4438 | 1

10 | Retaining Ring | SP1701-4440 | 1

12 | Screw | SP1010-06 | 1



Flow Rate Description	20 LPM at 3 Meter head at 1500 RPM
Height Description	67.5mm to port centre
Length	95.4mm
Series	51520 Series
Size	020 Pump
Type	Engine Cooling Pumps
Width	80mm
Brand	Jabsco
Warranty	1 Year
Drive Type Description	Pulley Driven
Impeller Fitted	JAB-653-0001-P
Model	51520-2001
Mounting Description	Pedestal Mount
Replaces	Interchangeable with 52020 Series
Self Primes up to	1.5 Metres (4.9 Feet)
Inlet Outlet	3/8" BSP Female
