Jabsco 31395-2512 Par Max 3 Pressure Pump (12V / 11 LPM / 25 PSI)
Jabsco 31395-2512 Par Max 3 Pressure Pump (12V / 11 LPM / 25 PSI)
Regular price
£178.26 GBP
Regular price
£148.55 GBP
Sale price
£178.26 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269

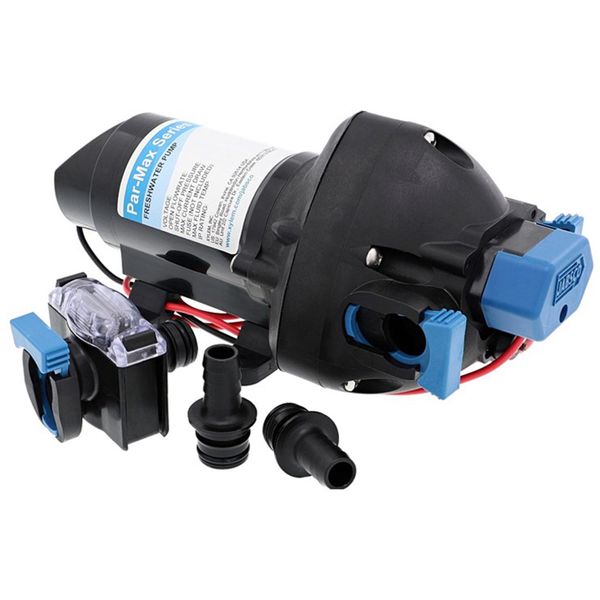

Jabsco 31395-2512 Par Max 3 Pressure Pump (12V / 11 LPM / 25 PSI)
Part No: JAB-31395-2512
Jabsco 31395-2512 water pressure pump system is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. The Jabsco water pressure system also comes complete with quick connect fittings - for ease of pump installation - as well as an inline strainer.
The Jabsco Par-Max 3 pump replaces Jabsco 31395-0292 Par-Max 2.9 pressure pumps.
Jabsco Pump 31395-2512-3A Spare Parts:
Part ID | Spare Part | Part Number
1 | Port Clips | 30647‐1000
2 | Switch Kit | 18916‐1025
3 | Check Valve Assembly| 20407034
4 | Diaphragm/Drive Assembly | Not offered
5 | Baseplate/Mounting Feet | 20717001A
Approvals
Complies with ISO8846 Marine (Ignition protection)
Cut In Pressure
15 PSI / 1 Bar
Cut Out Pressure Description
25 PSI / 1.7 Bar
Flow Rate Description
11 LPM (2.9 US GPM)
Fuse
10A
Height Description
110mm (4.3")
Length
230mm (9")
Series
Par Max 3
Supplied With
Quick Connect Fittings & Inline Strainer
Type
Fresh Water Pumps
Voltage Description
12V DC
Width
152mm (6")
Brand
Jabsco
Warranty
3 Years
Hose Size
13mm / 1/2"
Model
31395-2512-3A
Replaces
Jabsco 31395-0292 Par Max 2.9, WP-001 & 509732
Self Primes up to
1.8 Metres (5.9 Feet)
Inlet Outlet
Fittings for 13mm (1/2") ID hose
Amps Description
5.2A
View full details
Jabsco 31395-2512 Par Max 3 Pressure Pump (12V / 11 LPM / 25 PSI)
Part No: JAB-31395-2512
Jabsco 31395-2512 water pressure pump system is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. The Jabsco water pressure system also comes complete with quick connect fittings - for ease of pump installation - as well as an inline strainer.
The Jabsco Par-Max 3 pump replaces Jabsco 31395-0292 Par-Max 2.9 pressure pumps.
Jabsco Pump 31395-2512-3A Spare Parts:
Part ID | Spare Part | Part Number
1 | Port Clips | 30647‐1000
2 | Switch Kit | 18916‐1025
3 | Check Valve Assembly| 20407034
4 | Diaphragm/Drive Assembly | Not offered
5 | Baseplate/Mounting Feet | 20717001A
| Approvals | Complies with ISO8846 Marine (Ignition protection) |
| Cut In Pressure | 15 PSI / 1 Bar |
| Cut Out Pressure Description | 25 PSI / 1.7 Bar |
| Flow Rate Description | 11 LPM (2.9 US GPM) |
| Fuse | 10A |
| Height Description | 110mm (4.3") |
| Length | 230mm (9") |
| Series | Par Max 3 |
| Supplied With | Quick Connect Fittings & Inline Strainer |
| Type | Fresh Water Pumps |
| Voltage Description | 12V DC |
| Width | 152mm (6") |
| Brand | Jabsco |
| Warranty | 3 Years |
| Hose Size | 13mm / 1/2" |
| Model | 31395-2512-3A |
| Replaces | Jabsco 31395-0292 Par Max 2.9, WP-001 & 509732 |
| Self Primes up to | 1.8 Metres (5.9 Feet) |
| Inlet Outlet | Fittings for 13mm (1/2") ID hose |
| Amps Description | 5.2A |
