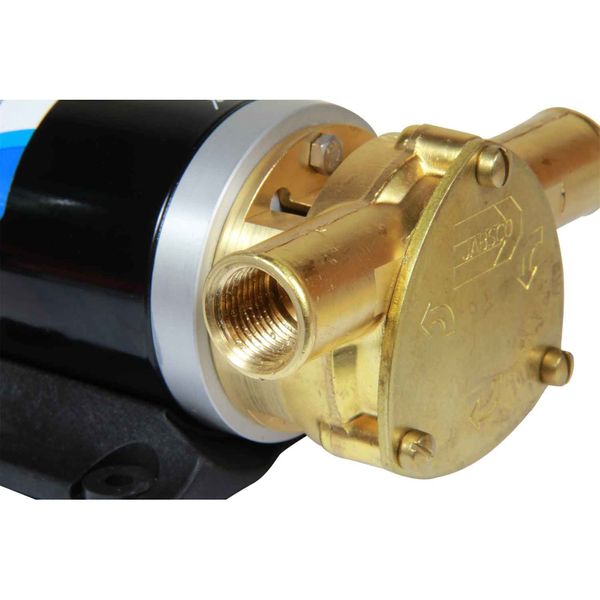

Jabsco 23610-3003 Maxi Puppy Electric Motor Pump (12V / 25mm Hose)



Part No: 504422



The Jabsco 23610-3003 Maxi Puppy 3000 is a reliable, self priming electric motor pump and is constructed with a bronze body and a stainless steel shaft.

All impeller electric pumps must not be mounted vertically where the impeller housing will be above the motor.

This Jabsco Pump 23610-3003 has the following Spare Parts:

Part ID | Spare Parts | Part Number | Quantity

1 | End Cover | 9328-0200 | 1

2 | Screw (3 Pack) | 91004-0090 | 3

3 | O-Ring | 18753-0660 | 1

4 | Impeller | 7273-0003B | 1

5 | Seal | SP2701-52B | 1

6 | Screw | X3001-147F | 2

7 | Slinger (3 Pack) | 6342-0000 | 1

8 | Motor (12V) | SP8012-0159B | 1

9 | Body | 23064-2100 | 1

| Service Kit | SK224-01 | 1
