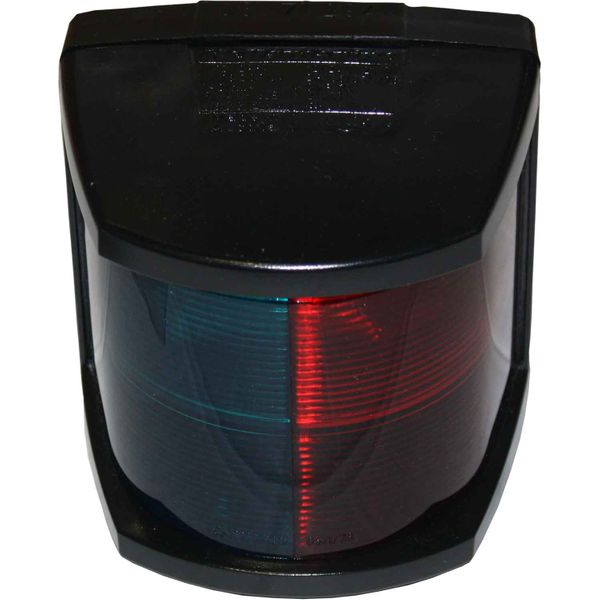

Hella 2984 Bicolour Navigation Light (Black Case / 12V / 25W)
Hella 2984 Bicolour Navigation Light (Black Case / 12V / 25W)
Hella 2984 Bicolour Navigation Light (Black Case / 12V / 25W)
Part No: 721105
Hella 2984 navigation light housed in a UV and impact resistant black plastic body. This is a Bicolour combined Port Red & Starboard Green navigation light suitable for vessels under 20 metres in length. Each colour has a 112.5° arc (225° overall) with a 12 volt incandescent bulb included, which can be easily accessed and changed due to the 'snap lock' housing. This series of navigation lamps feature a vertically hanging bulb, with contacts in the upper area of the lamp which will help prevent corrosion. The Hella 2984 navigation light is suitable for vertical surface mount and cable entry comes through the base plate. This navigation light is rated IP55 for water ingress.
This 12v light can be used on 24v systems if a 24v bulb is fitted.
Approvals | Approved to BSH |
Case Colour | Black |
Height Description | 108mm (4.25") |
Material | Plastic |
Voltage Description | 12V DC |
Wattage | 25W |
Width | 107mm |
Brand | Hella |
Bulb | Incandescent |
Primary Construction | Plastic |
Suitable For | Vessels under 20 Metres / 65.6 feet |
Bulb Description | BAY15d Incandescent |
Light Arc | 225 Degrees |
Light Colour | Bicolour (Combined Port Red and Starboard Green) |
Visibility | 2 Nautical Miles |
Amps Description | 2.08A |
Depth | 90mm |
