Surecal Calorifier Thermostatic Mixing Valve (15mm Fittings)
Surecal Calorifier Thermostatic Mixing Valve (15mm Fittings)
Regular price
£86.30 GBP
Regular price
Sale price
£86.30 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Order Now: 0800 193 3368

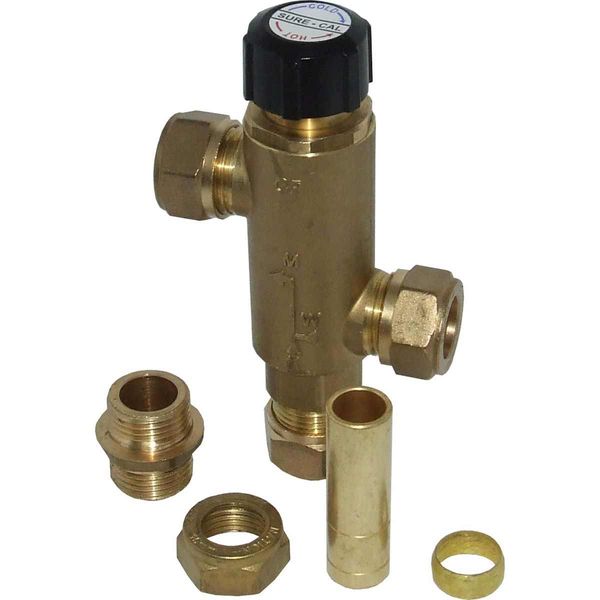

Surecal Calorifier Thermostatic Mixing Valve (15mm Fittings)
Part No: SJ-MIX15
This Surecal thermostatic mixing valve is supplied as standard for all Surecal universal mount calorifiers, but not on vertical mount calorifiers.
It is a safety feature which adds cold water to the hot water in the calorifier to achieve a desired water temperature. This temperature is adjustable between 45°C and 65°C. Because it is mixing water together, it adds to the overall volume of the water that comes from the calorifier. At 65°C it typically adds about 25% more volume.
The mixing valve features 15mm fittings.
| Approvals | CE, ISO9001 |
| Flow Rate Description | 1.2 Litres Per Hour at 1 bar |
| Length | 130mm |
| Material | Bronze, DZR, Brass Body CW625N, Stainless Steel Spring |
| Temperature Range | Setting: 30ºC - 70ºC, Maximum Hot Water: 85ºC |
| Type | Thermostatic Valves |
| Width | 70mm |
| Working Pressure | Maximum: 14 bar, Minimum: 0.2 bar |
| Brand | Surecal |
| Compression Fitting Size | 15mm |
| Fitting | Thermostatic Mixing Valve |
| Country of Origin | United Kingdom |
| Connections Description | 15mm (3/5") fittings |
| Replaces | HC-045 & 520955 |
