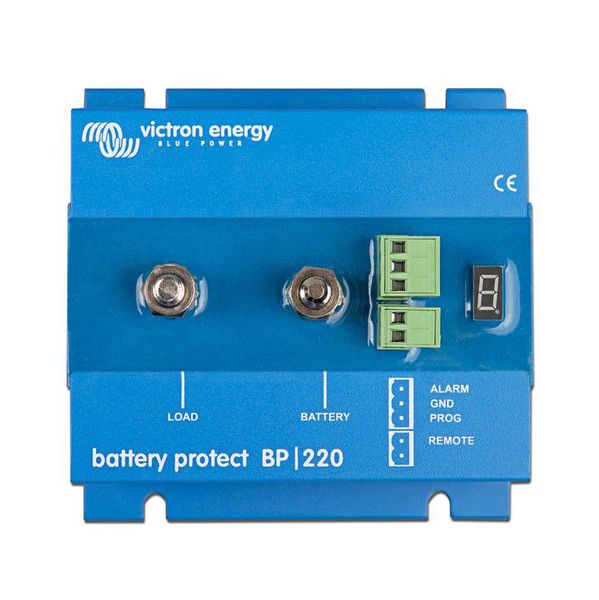

Victron BP220 BatteryProtect (220 Amps / M8 Stud)
Victron BP220 BatteryProtect (220 Amps / M8 Stud)
Couldn't load pickup availability
Victron BP220 BatteryProtect (220 Amps / M8 Stud)
Part No: VV-130
Victron BatteryProtect BP220 disconnects the battery from non-essential loads before it becomes completely discharged. It can be set to disconnect at several different voltages and a digital display is built in to indicate what setting has been selected. An alarm signal is also built in that can be used for an external buzzer/warning light, this alarm is triggered 90 seconds before disconnect. The battery protector unit automatically detects the system voltage (12V/24V) and has over-voltage protection built in. Continuous load rating 220A.
NOTE: The battery protect can be used with all types of battery technology.
- Alarm output delay: 12 seconds
- Maximum load on alarm output: 50mA (short circuit proof)
- Load disconnect delay: 90 seconds (immediate if triggered by the VE.Bus BMS)
- Load reconnect delay: 30 seconds
| Consumption | On: 1.5 mA, Off / Low Voltage Shutdown: 0.6 mA |
| Height Description | 62mm (2.5") |
| Operating Temperature | Full Load: -40°C to +40°C (up to 60% of nominal load at 50°C) |
| Rating | Electronics: IP67 (potted), Connections: IP00 |
| Type | Load Switchers |
| Voltage Description | 6V - 35V DC |
| Weight | 0.8kg (1.8 lbs) |
| Width | 123mm (4.9") |
| Brand | Victron |
| Connections Description | M8 |
| Torque | Mounting: 9 Nm |
| Amps Description | Max. continuous: 220A, Peak (during 30s): 600A |
| Depth | 120mm (4.8") |
