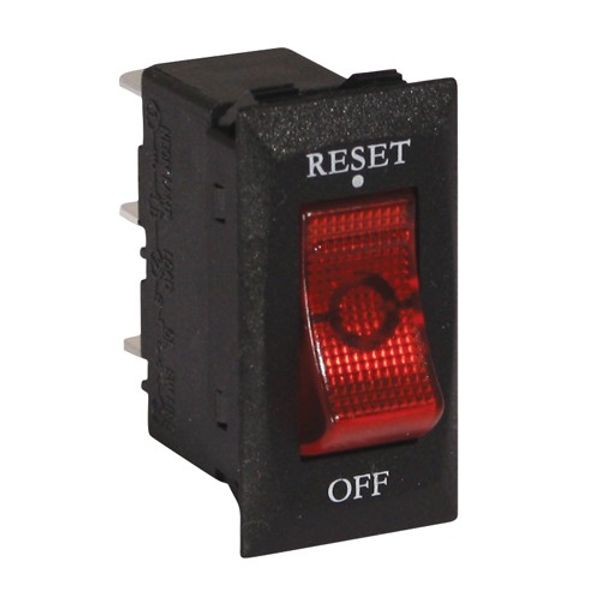

Carling Circuit Breaker C1005B Series 10A Red Rocker

Part No: 8-82850

The Carling C1005B series offers the functionality of a switch and circuit breaker in a single compact package eliminating the need for a switch and thermal circuit protector on customer panels. The 10A breaker includes a red ON illumination suitable for 125/250V AC or 32V DC.

Approvals: UL 1077, UL 1363, cuL, TUV certified to IEC 60934.

Panel cut out: 1.125" x 0.550" (28.6mm x 14mm)

Overall dimensions: 1.280" x 0.669" (32.5mm x 17mm)
