Bowman

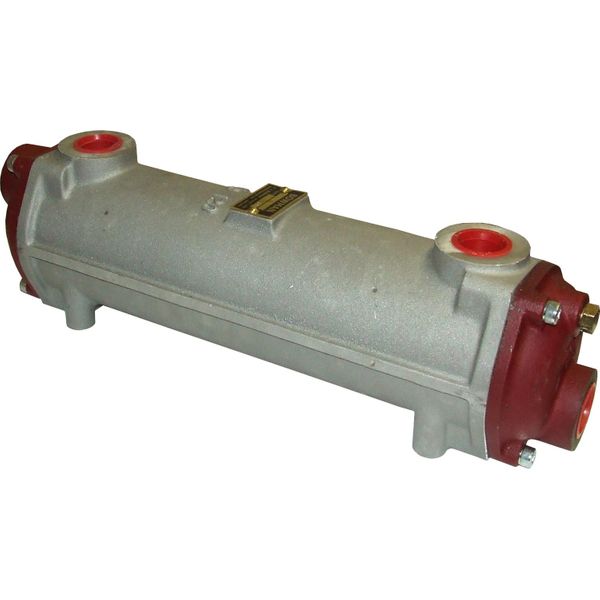

Bowman FC120 Hydraulic Oil Cooler (1" BSP Oil / 1" BSP Water)
Bowman FC120 Hydraulic Oil Cooler (1" BSP Oil / 1" BSP Water)
Regular price
£850.45 GBP
Regular price
£708.71 GBP
Sale price
£850.45 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Bowman FC120 Hydraulic Oil Cooler (1" BSP Oil / 1" BSP Water)
Part No: 203342
Bowman FC120 hydraulic oil cooler heat exchanger is also suitable to be used for heat transfer fluids, lubricating and quenching oils.
Typical Example of oil cooler performance with an oil outlet temperature of 50°C and water inlet temperature of 25°C:
- Hydraulic oil flow: 116 LPM
- Cooling water flow: 125 LPM
- Heat dissipated: 26 kW
- Oil Pressure Drop: 100 kPa
- Head Loss: 50 kPa
Height Description
130mm (5-1/8")
Length
456mm
Width
126mm
Brand
Bowman
Country of Origin
United Kingdom
Connections Description
Oil & Water: 1" BSP Female
Cooling Water Flow
140 LPM (exceeding maximum flow may cause tube failure)
Dimensions
Distance between fixing hole centres: 288mm x 76mm
Fixing Hole Size
M8 x 12
Hydraulic Oil Flow
116 LPM Maximum (based on Shell Tellus 37 at 60°C)
Internal Oil Volume
1.50 Litres
Internal Water Volume
1.06 Litres
Maximum Pressure
20 bar at 120°C
Model
FC120-1426-3
Pressure Drop
Oil: 100 kPa
Raw Water Flow
80 LPM (exceeding maximum flow may cause tube failure)
Share
View full details
Bowman FC120 Hydraulic Oil Cooler (1" BSP Oil / 1" BSP Water)
Part No: 203342
Bowman FC120 hydraulic oil cooler heat exchanger is also suitable to be used for heat transfer fluids, lubricating and quenching oils.
Typical Example of oil cooler performance with an oil outlet temperature of 50°C and water inlet temperature of 25°C:
- Hydraulic oil flow: 116 LPM
- Cooling water flow: 125 LPM
- Heat dissipated: 26 kW
- Oil Pressure Drop: 100 kPa
- Head Loss: 50 kPa
| Height Description | 130mm (5-1/8") |
| Length | 456mm |
| Width | 126mm |
| Brand | Bowman |
| Country of Origin | United Kingdom |
| Connections Description | Oil & Water: 1" BSP Female |
| Cooling Water Flow | 140 LPM (exceeding maximum flow may cause tube failure) |
| Dimensions | Distance between fixing hole centres: 288mm x 76mm |
| Fixing Hole Size | M8 x 12 |
| Hydraulic Oil Flow | 116 LPM Maximum (based on Shell Tellus 37 at 60°C) |
| Internal Oil Volume | 1.50 Litres |
| Internal Water Volume | 1.06 Litres |
| Maximum Pressure | 20 bar at 120°C |
| Model | FC120-1426-3 |
| Pressure Drop | Oil: 100 kPa |
| Raw Water Flow | 80 LPM (exceeding maximum flow may cause tube failure) |
