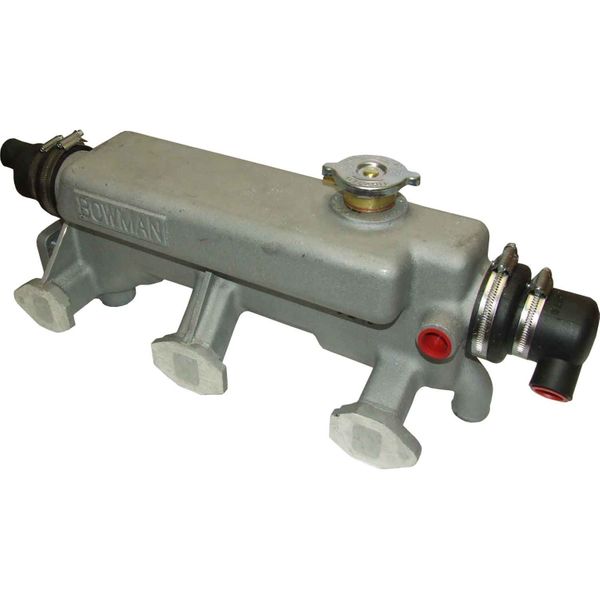

Bowman BL180 Heat Exchanger, Manifold & Header Tank (BMC 1.5, BMC 1.8)
Bowman BL180 Heat Exchanger, Manifold & Header Tank (BMC 1.5, BMC 1.8)
Regular price
£1,634.96 GBP
Regular price
£1,362.47 GBP
Sale price
£1,634.96 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Bowman BL180 Heat Exchanger, Manifold & Header Tank (BMC 1.5, BMC 1.8)
Part No: 201200
Bowman BL180-3318 combined water cooled exhaust manifold and heat exchanger for BMC 1.5 and BMC 1.8 B series based diesel engines.
Bolts directly to the exhaust ports.
Complete with tubestack and rubber end caps.
Order gaskets, hoses and exhaust outlet as extras.
Bowman recommend NOT fitting zinc anodes because the tubes used in the construction of the heat exchangers are copper-nickel alloy, and as such they do not require a zinc anode. It is possible that if a zinc anode is fitted it can actually destroy the copper-oxide film built up by the tube as a natural defence, which can allow the tube material to be attacked.
Application
BMC 1.5, 1.8 B series based diesel engines.
Material
Aluminium LM6M body, cupro nickel tubestack & neoprene end covers.
Supplied With
Tubestack, Rubber End Caps.
Brand
Bowman
Suitable For
BMC
Country of Origin
United Kingdom
Manifolds and Manicoolers
Heat Exchanger Manifolds / Manicoolers
Connections Description
Raw water: 22mm ID neoprene end caps, Fresh water: To suit 32mm ID hose
Flange
4 Bolt Flange, 81mm PCD
Model
BL180
Replaces
Thornycroft 54382600 & 54382200. Bowman EH220-2844, EH220-2852 & EH220-2995 Heat Exchangers.
Share
View full details
Bowman BL180 Heat Exchanger, Manifold & Header Tank (BMC 1.5, BMC 1.8)
Part No: 201200
Bowman BL180-3318 combined water cooled exhaust manifold and heat exchanger for BMC 1.5 and BMC 1.8 B series based diesel engines.
Bolts directly to the exhaust ports.
Complete with tubestack and rubber end caps.
Order gaskets, hoses and exhaust outlet as extras.
Bowman recommend NOT fitting zinc anodes because the tubes used in the construction of the heat exchangers are copper-nickel alloy, and as such they do not require a zinc anode. It is possible that if a zinc anode is fitted it can actually destroy the copper-oxide film built up by the tube as a natural defence, which can allow the tube material to be attacked.
| Application | BMC 1.5, 1.8 B series based diesel engines. |
| Material | Aluminium LM6M body, cupro nickel tubestack & neoprene end covers. |
| Supplied With | Tubestack, Rubber End Caps. |
| Brand | Bowman |
| Suitable For | BMC |
| Country of Origin | United Kingdom |
| Manifolds and Manicoolers | Heat Exchanger Manifolds / Manicoolers |
| Connections Description | Raw water: 22mm ID neoprene end caps, Fresh water: To suit 32mm ID hose |
| Flange | 4 Bolt Flange, 81mm PCD |
| Model | BL180 |
| Replaces | Thornycroft 54382600 & 54382200. Bowman EH220-2844, EH220-2852 & EH220-2995 Heat Exchangers. |
