Bowman

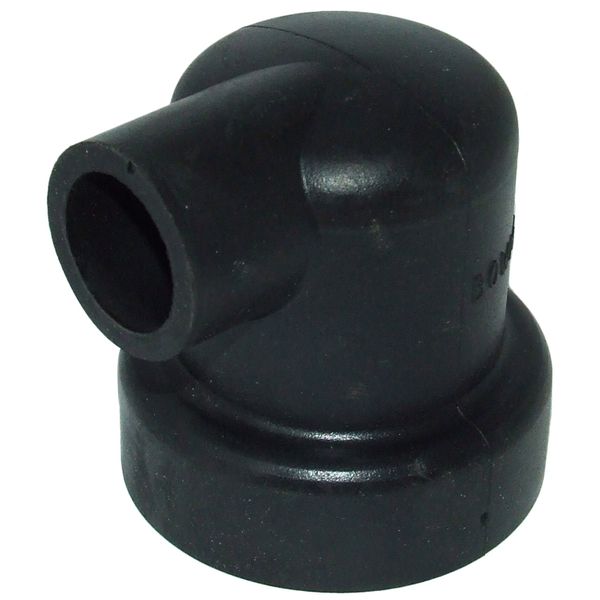

Bowman 3186NP 90 Degree End Cap for Heat Exchangers (28mm & 70mm ID)
Bowman 3186NP 90 Degree End Cap for Heat Exchangers (28mm & 70mm ID)
Regular price
£36.65 GBP
Regular price
£30.54 GBP
Sale price
£36.65 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Bowman 3186NP 90 Degree End Cap for Heat Exchangers (28mm & 70mm ID)
Part No: BOW-3186NP
Replacement Bowman rubber moulded end cap, designed for marine heat exchanger manifolds. You should find that your current Bowman end caps have their part number embossed on them to easily identify the replacement you need. This is Bowman part number 3186NP, which is a 90 degree outlet end cap.
This heat exchanger end cap is suitable to be used with the following Bowman heat exchangers: BL570, FM242, FM300, FM400, FM450, FM452, FM600, FM602, FM662, FM700, GM370, GM550, MB220, MB300, MB380, PE250, PE390, PE580, VW160 and VW240.
Replaces: Thornycroft end cap 54384098.
Application
Bowman Heat Exchangers BL570, FM242, FM300, FM400, FM450, FM452, FM600, FM602, FM662, FM700, GM370, GM550, MB220, MB300, MB380, PE250, PE390, PE580, VW160, VW240.
Length
85mm
Material
Rubber
Brand
Bowman
Primary Construction
Rubber
Country of Origin
United Kingdom
Angle
90 Degree
Diameter Description
Inlet ID: 70mm, Inlet OD: 80mm. Outlet ID: 28mm, Outlet OD: 38mm. Body ID: 51mm, Body OD: 60mm.
Replaces
Thornycroft End Cap 54384098.
Inlet Outlet
28mm
Share
View full details
Bowman 3186NP 90 Degree End Cap for Heat Exchangers (28mm & 70mm ID)
Part No: BOW-3186NP
Replacement Bowman rubber moulded end cap, designed for marine heat exchanger manifolds. You should find that your current Bowman end caps have their part number embossed on them to easily identify the replacement you need. This is Bowman part number 3186NP, which is a 90 degree outlet end cap.
This heat exchanger end cap is suitable to be used with the following Bowman heat exchangers: BL570, FM242, FM300, FM400, FM450, FM452, FM600, FM602, FM662, FM700, GM370, GM550, MB220, MB300, MB380, PE250, PE390, PE580, VW160 and VW240.
Replaces: Thornycroft end cap 54384098.
| Application | Bowman Heat Exchangers BL570, FM242, FM300, FM400, FM450, FM452, FM600, FM602, FM662, FM700, GM370, GM550, MB220, MB300, MB380, PE250, PE390, PE580, VW160, VW240. |
| Length | 85mm |
| Material | Rubber |
| Brand | Bowman |
| Primary Construction | Rubber |
| Country of Origin | United Kingdom |
| Angle | 90 Degree |
| Diameter Description | Inlet ID: 70mm, Inlet OD: 80mm. Outlet ID: 28mm, Outlet OD: 38mm. Body ID: 51mm, Body OD: 60mm. |
| Replaces | Thornycroft End Cap 54384098. |
| Inlet Outlet | 28mm |
