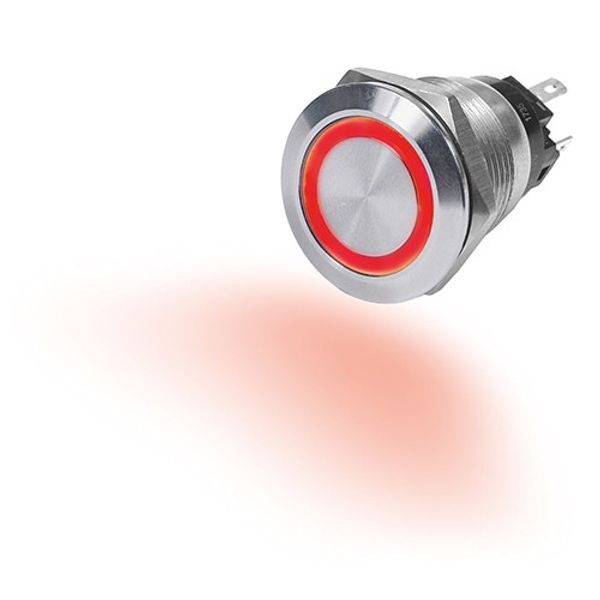

Blue Sea SS Push Button Switch with Red LED Ring (10A, Off-Spring On)
Part No: 8-24163
Blue Sea push button switch 4163 features a red LED ring. A contemporary and compact switch for 10A continuous switching, Off - Spring On operation. The push button has a 316 Stainless Steel construction for optimal corrosion resistance and superior style.
- IP67 waterproof with O-ring panel gasket and moulded rear cover
- Reverse polarity protected
- Independent Illumination - Separate contacts for LED power
- Can be wired for normally open or normally closed
- Switching Cycles: 40,000
| Approvals | ISO 8846 Marine |
| Material | Stainless Steel 316 |
| Operating Temperature | -30°C to +70°C (86°F to 158°F) |
| Temperature Range | Storage: -55°C to +85°C |
| Voltage Description | 12V DC |
| Brand | Blue Sea Systems |
| Switch Operation | Off / Spring On |
| Connections Description | 5 – 0.110" Quick Connect terminals |
| Diameter Description | Mounting Hole: 3/4" (19mm) |
| Thickness | Panel: 1mm - 8mm (0.04" - 0.31") |
| Amps Description | 10A @ 12V DC Resistive, 3A @ 12V Inductive, LED Operating Current: 20mA maximum |
