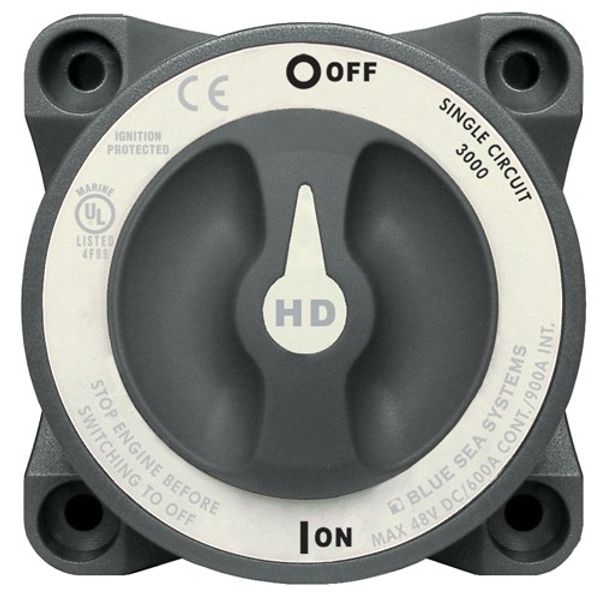

Blue Sea Heavy Duty Battery Switch (On/Off / 600A)



Part No: 8-23000

Blue Sea HD battery switch (Heavy Duty) with up to 600 Ampere continuous rating for large diesel engines.

Label with international legends

Tactile indicator conveys knob position by feel

Accepts up to 4/0 AWG (120mm2) battery cables

Case design allows surface or rear panel mounting

7/8" (22mm) stud length accepts multiple cable terminals

One-piece terminal stud design never loosens over time

M12 tin-plated copper studs for maximum conductivity & corrosion resistance, accepts 1/2" (M12) ring terminals

Specifications:

Terminal Stud Size: M12 (1/2")

Terminal Stud Torque: 220 in-lbs

Mounting Holes: Accepts M6 screw

Cable Size to Meet Ratings: 95mm2 (4/0 AWG)

Cable Clearance: 28mm (1.10")



Approvals	CE marked, ISO 8846, UL Listed UL 1107 electric power switches, Meets ABYC requirements, Meets UL1500 & SAE J1171 external ignition protection requirements
Voltage Description	32V DC Maximum
Brand	Blue Sea Systems
Amps Description	Continuous: 600A, Intermittent (5 minutes): 900A, Cranking (10 seconds): 2750A
