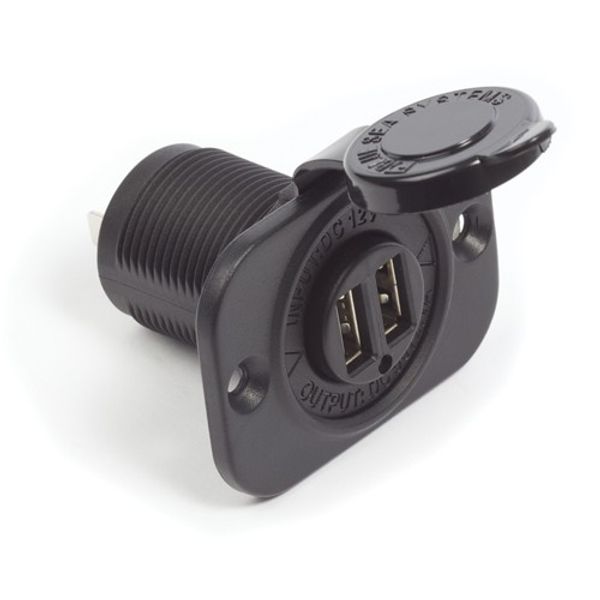

Blue Sea Dual USB Charger Socket (12V / 24V / 2.1A / Black)
Blue Sea Dual USB Charger Socket (12V / 24V / 2.1A / Black)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Blue Sea Dual USB Charger Socket (12V / 24V / 2.1A / Black)
Part No: 8-21016
Charge two mobile devices on the go with the Blue Sea Dual USB charger socket, ideal for marine installations with corrosion resistant materials to ensure a solid contact and low voltage drop. The dual USB socket is Dual compatible with most mobile devices including Apple products. This USB charger fits in same mounting hole as a traditional 12 Volt outlet, providing an easy-to-install, convenient access for charging mobile devices.
Protective dust cap with tether keeps dust and spray from shortening the life of the charger
Conformal coated circuit board to stand up to the harsh marine environment
2A Supply fuse is not included
Specifications:
Thermal Overload Protection: Yes
Short Circuit Protection: Yes
Reverse Polarity Protection: Yes
USB Sockets: 2
USB: 2.0
Approvals
RoHS, CE
Height Description
42.3mm (1.67")
Voltage Description
Input: 12V / 24V (9-32V), Output: 5V DC +/- 5%
Width
59.8mm (2.35")
Brand
Blue Sea Systems
Plugs Sockets
Socket
Diameter Description
ID: 21.6mm (0.85"), Cut Out: 28.58mm (1-1/2"), Screw Hole: 4mm (0.16")
Dimensions
Distance Between Mounting Hole Centres: 47.8mm (1.88")
Amps Description
Maximum Output: 2.1A DC (total), Parasitic Draw: 15mA
Depth
Overall: 41.4mm (1.63"), Above Surface: 4.9mm (0.19"), Behind Surface: 36.5mm (1.44")
Share
View full details
Blue Sea Dual USB Charger Socket (12V / 24V / 2.1A / Black)
Part No: 8-21016
Charge two mobile devices on the go with the Blue Sea Dual USB charger socket, ideal for marine installations with corrosion resistant materials to ensure a solid contact and low voltage drop. The dual USB socket is Dual compatible with most mobile devices including Apple products. This USB charger fits in same mounting hole as a traditional 12 Volt outlet, providing an easy-to-install, convenient access for charging mobile devices.
Protective dust cap with tether keeps dust and spray from shortening the life of the charger
Conformal coated circuit board to stand up to the harsh marine environment
2A Supply fuse is not included
Specifications:
Thermal Overload Protection: Yes
Short Circuit Protection: Yes
Reverse Polarity Protection: Yes
USB Sockets: 2
USB: 2.0
| Approvals | RoHS, CE |
| Height Description | 42.3mm (1.67") |
| Voltage Description | Input: 12V / 24V (9-32V), Output: 5V DC +/- 5% |
| Width | 59.8mm (2.35") |
| Brand | Blue Sea Systems |
| Plugs Sockets | Socket |
| Diameter Description | ID: 21.6mm (0.85"), Cut Out: 28.58mm (1-1/2"), Screw Hole: 4mm (0.16") |
| Dimensions | Distance Between Mounting Hole Centres: 47.8mm (1.88") |
| Amps Description | Maximum Output: 2.1A DC (total), Parasitic Draw: 15mA |
| Depth | Overall: 41.4mm (1.63"), Above Surface: 4.9mm (0.19"), Behind Surface: 36.5mm (1.44") |
