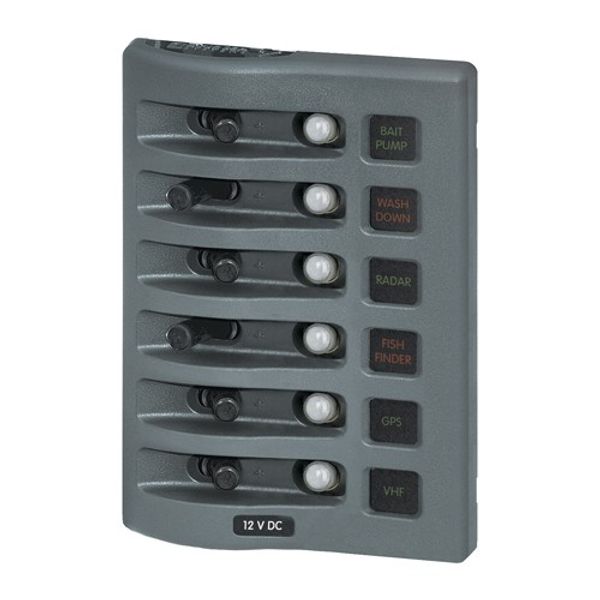

Blue Sea 6-Way Waterproof Circuit Breaker Panel Grey (12V / 24V)



Part No: 8-24376

Blue Sea WeatherDeck Waterproof Circuit Breaker Panel 4376 is rated 12 / 24 Volts, has 6 positions and is designed for flybridge and open cockpit applications.

Rated IP67 for temporary immersion for 30 minutes

Independent label backlighting allows switching and dimming

Compatible with all Blue Sea Systems Digital Dimmers

6 circuit model

Panel can be mounted in four different orientations

Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Contains Blue Sea:

6x 4135 Push Button Reset Only Circuit Breaker Boot - Clear

6x 4138 WeatherDeck Toggle Switch Boot - Black

6x 4150 WeatherDeck Toggle Switch SPST - ON-OFF

4215 Waterproof DC Label Kit - 30 Black Square Labels

6x 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps



Height Description	152.4mm (6.00")
Material	Reinforced Polycarbonate
Voltage Description	12V - 24V DC
Width	107.95mm (4.25")
Brand	Blue Sea Systems
Number of Switches	6
Amps Description	Max Operating (per circuit): 15A @ 12V DC, 9A @ 24V DC, Backlight Operating: 10mA / Illuminated Circuit, Panel Cumulative: 45A, Switch: 15A maximum, Circuit Breaker: 15A
Depth	88.9mm (3.50")
