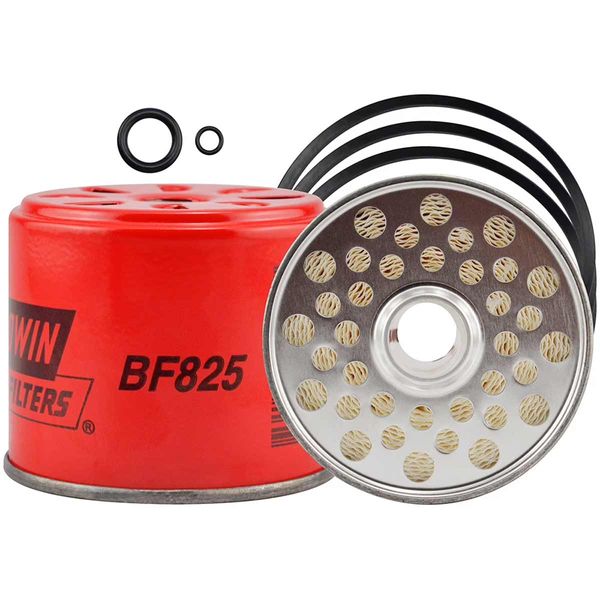

Baldwin Fuel Filter Element to Replace CAV 096, 296 & 901



Part No: 199296

Baldwin service fuel filter element for the CAV type fuel filters. Contains 5 micron media and each fuel filter element is supplied with a top and bottom sealing washer kit.

This fuel filter element is suitable for the following engine models:

- BMC 1.5 Leyland 1500 Diesel, 1.8 Leyland 1800 Diesel, 2.2 Diesel, 2.52 Leyland 2520 Diesel, 3.4 Diesel, 3.8 Leyland 4/98, 5.1 Diesel and 5.7 Leyland 6/98 engines.

- Ford 590E, Tempest 2401E, 2613, 2614, 2615E, 2654, 2655, 2656, 2658E, 2701, Dorset 2704, Dorset 2711 & 2712E, 2713, Dorset 2714 & 2715E, Dover 2722E, 2723, Dover 2725E, 2726T, 2728T, BSD329, BSD332, BSD333, BSD333H, BSD442, BSD444, BSD666, BSD678, FSD425, XLD416, XLD418 and York 2.4 Diesel engines.

- Land Rover 2.25 and 2.5 Diesel engines.

- Mercedes OM401, OM403, OM404, OM404A, OM407, OM421, OM423, OM424, OM424A, OM615, OM616, OM617, OM621 and OM636 engines.

- Mermaid Merlin engines.

- Mitsubishi K3, K4, L2 and L3 engines

- Perkins 4108 engines.

- Thornycroft 33, 60, 80, 90, 108, 140, 150, 152, 154, 230, 250, 251, 345, 360, 361, 380 and 381 engines.

- Volvo Penta 2001, 2002, 2003, 2003T, B20, B21, B30, D1-13, D1-20, D1-30, D2-40, D2-55, D2-75, D3-110, D3-130, D3-160, D3-190, D21, D32, MD1, MD1A, MD1B, MD2, MD2A, MD2B, MD3B, MD5, MD5A, MD5B, MD5C, MD6A, MD6B, MD7A, MD7B, MD11C, MD11D, MD2010, MD2020, MD2030 and MD2040 engines.

The fuel filter element does not have an internal support, and will replace popular makes such as: CAV096, CAV296, CAV901 7111-296, Champion L131, Crosland 522, Coopers AZF015, Fiaam FT4788, Fleetguard FF167, Fram CP1191PL, Multipart 601980, Perkins 26560017 & 26561117, Unipart GFE5296, Volvo Penta 3581078, 858201 and 236628.



Application	Diesel. BMC, Ford, Land Rover, Mercedes, Mermaid Merlin, Mitsubishi, Perkins, Thornycroft & Volvo Penta Engines. Please See The Description For More Details
Height Description	71.4mm
Brand	Baldwin
Spin On	Yes
Style	CAV Type Element
Suitable For	BMC|Ford|Land Rover|Mercedes|Mermaid|Mitsubishi|Perkins|Thornycroft|Volvo
Element	5 Micron
Unit of Sale	Single Unit
Diameter Description	OD: 87mm, ID: 19.2mm & 21mm
Replaces	CAV096, CAV296, CAV901 7111-296, Champion L131, Crosland 522, Coopers AZF015, Fiaam FT4788, Fleetguard FF167, Fram CP1191PL, Multipart 601980, Perkins 26560017, 26561117, Unipart GFE5296, Volvo Penta 3581078, 858201, 236628, Orbitrade 17201
