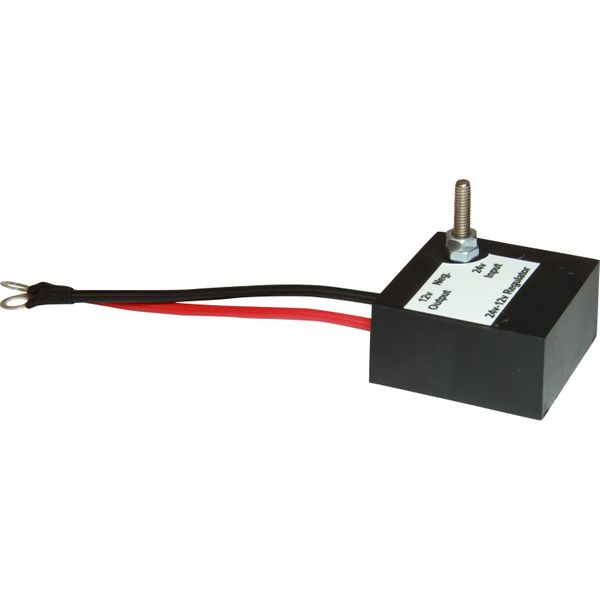

ASAP Electrical Voltage Dropper for Faria Gauges (24 Volt to 12 Volt)

Part No: 708924

Power reducer from 24 volt to 12 volt for one Faria Beede Tachometer and three 51mm analogues gauges (such as fuel level, temperature, oil pressure).

This voltage dropper DOES NOT power the instrument bulbs which must be changed to 24 volt bulbs

Maximum load: One Faria Beede Tachometer & three Faria Beede 51mm gauges (such as temperature, pressure, level)

Operates gauge mechanism only - NOT the instrument lighting

- Maximum temperature reached: 62° C @ 26 volt input, 400mA load, in still air

- Mounting: Directly on the rear of the tachometer gauge via the power connection bolts

- Electrical connections: Connected to the supply by protruding 10mm M4 bolt and the tacho's grid connection.

- Enclosure: Splash proof ABS enclosure, potted
