AMC 5 Core 1 & 2mm² Black Thin Wall Cable (30m)
AMC 5 Core 1 & 2mm² Black Thin Wall Cable (30m)
Regular price
£92.92 GBP
Regular price
Sale price
£92.92 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
AMC 5 Core 1 & 2mm² Black Thin Wall Cable (30m)
Part No: 734523-A
Auto Marine thin wall electrical cable, with 4 x 1mm² and 1 x 2mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand five core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade black PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.

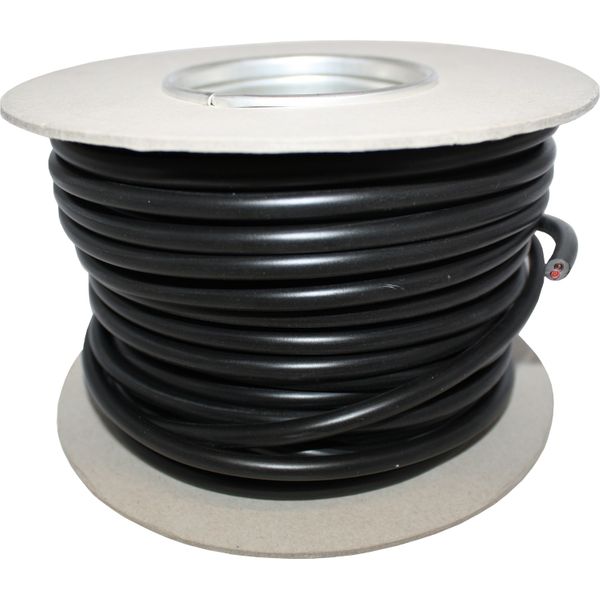

This is a 30 metre cable reel with a rounded black PVC wall.
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Maximum Load Description | 12V = 300 Watts, 24V = 600 Watts |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Brand | AMC |
| Style | Thin Wall Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 5 Core |
| Colour | Black |
| Country of Origin | United Kingdom |
| Unit of Sale | 30 Metres |
| Cable Inner Colours | Brown, Green, Red, White & Yellow |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 4 x 32/0.20 mm, 1 x 28/0.30 mm |
| Cable Conductor Cross Section Description | 4 x 1.0mm² and 1 x 2.0mm² |
| Diameter Description | Max Outside Diameter: 7.6mm |
| Resistance Per Metre at 20degC | 0.0185 ohms & 0.00942 ohms |
| Shape Description | Round |
| Amps Description | Nominal Current Rating: 16.5A & 25A |
