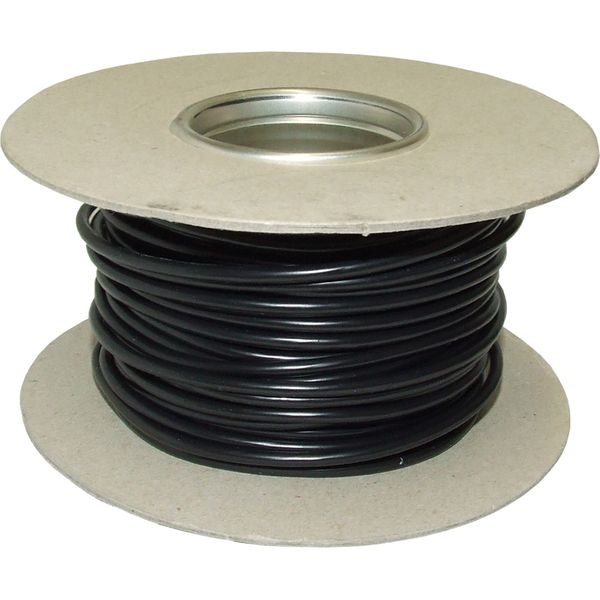

AMC 1 Core 4mm² Black Thin Wall Cable (30m)
AMC 1 Core 4mm² Black Thin Wall Cable (30m)
Regular price
£44.94 GBP
Regular price
£37.45 GBP
Sale price
£44.94 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
AMC 1 Core 4mm² Black Thin Wall Cable (30m)
Part No: 734153-A
Auto Marine thin wall electrical cable, with 4mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade black PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 30 metre cable reel with black PVC wall, other wall colours are also available.
Shape Description
Round
Colour
Black
Resistance Per Metre at 20degC
0.00471 ohms
Diameter Description
Max Outside Diameter: 3.5mm
Cable Conductor Cross Section Description
4.0mm²
Conductor Specifications
56/0.30 mm
Cable Insulation
Hard Grade PVC
Unit of Sale
30 Metres
Country of Origin
United Kingdom
Cable Cores
1 Core
Approvals
Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005
Cable Conductor
Plain Copper
Style
Thin Wall Cable
Brand
AMC
Voltage Description
Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits)
Type
PVC Single Core Cables
Temperature Range
-40°C to +105°C (with excursions to 120°C max)
Maximum Load Description
12V = 468 Watts, 24V = 936 Watts
Amps Description
Nominal Current Rating: 39A
Share
View full details
AMC 1 Core 4mm² Black Thin Wall Cable (30m)
Part No: 734153-A
Auto Marine thin wall electrical cable, with 4mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade black PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 30 metre cable reel with black PVC wall, other wall colours are also available.
| Shape Description | Round |
| Colour | Black |
| Resistance Per Metre at 20degC | 0.00471 ohms |
| Diameter Description | Max Outside Diameter: 3.5mm |
| Cable Conductor Cross Section Description | 4.0mm² |
| Conductor Specifications | 56/0.30 mm |
| Cable Insulation | Hard Grade PVC |
| Unit of Sale | 30 Metres |
| Country of Origin | United Kingdom |
| Cable Cores | 1 Core |
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Cable Conductor | Plain Copper |
| Style | Thin Wall Cable |
| Brand | AMC |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Type | PVC Single Core Cables |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Maximum Load Description | 12V = 468 Watts, 24V = 936 Watts |
| Amps Description | Nominal Current Rating: 39A |
